v1.3 Motor Cables

$18.00

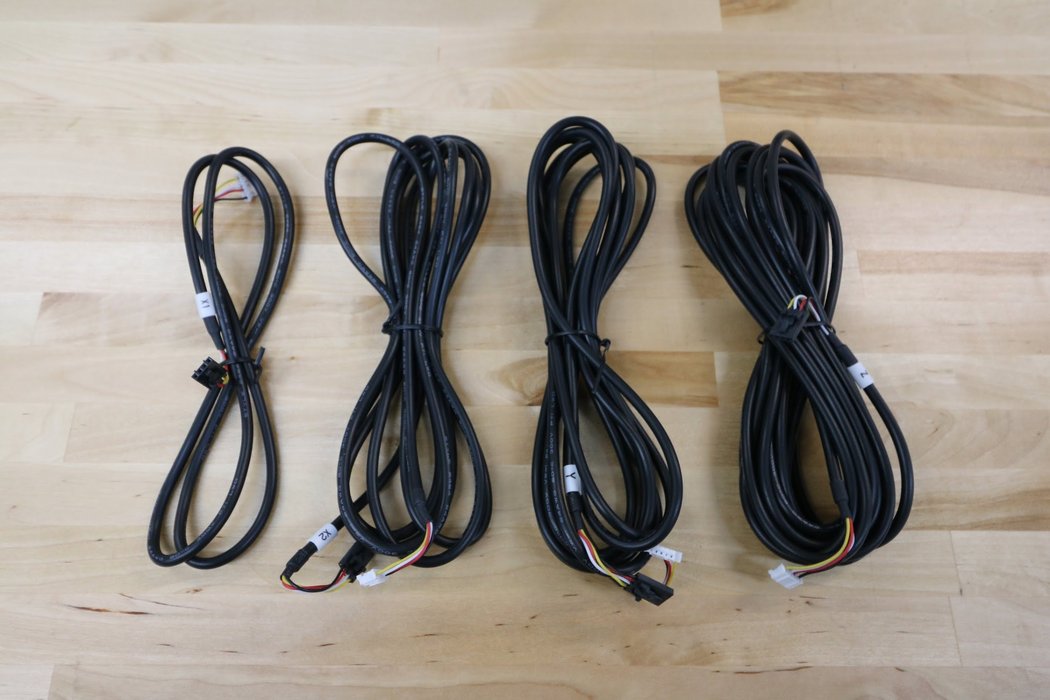

These 4-wire cables connect each NEMA 17 stepper motor to the Farmduino. They are labelled on the Farmduino end X1, X2, Y, and Z. Sold individually and as a set.

Lengths:
  • 0.95m (X1)
  • 2.6m (X2)
  • 3.1m (Y)
  • 4.8m (Z)
Cores: 4
Gauge: 18
Motor Connector: 6 pin connector (only 4 pins used)
Farmduino Connector: 2.54mm pitch 4 pin dupont connector with locking tab
Outer Color: Black
