Gantry Main Beam 1
Gantry Main Beam

Gantry Main Beam

Sold out
$35.00

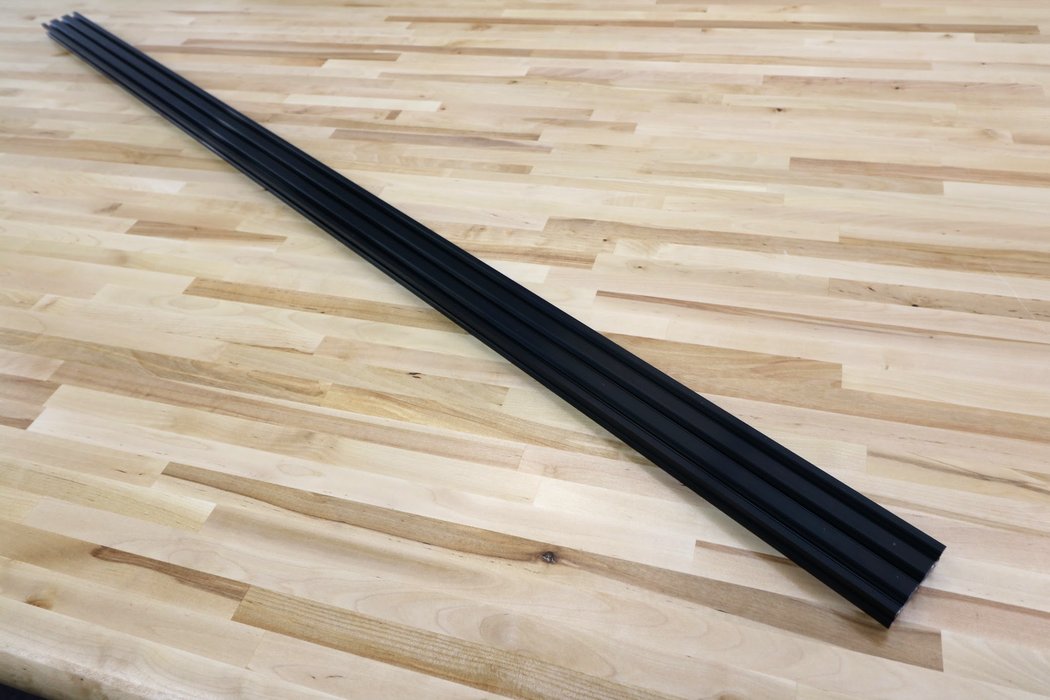

This aluminum extrusion serves as the gantry's primary structural element. The cross-slide's v-wheels move across this extrusion, allowing FarmBot to move in the y-direction.

Length: 1500mm

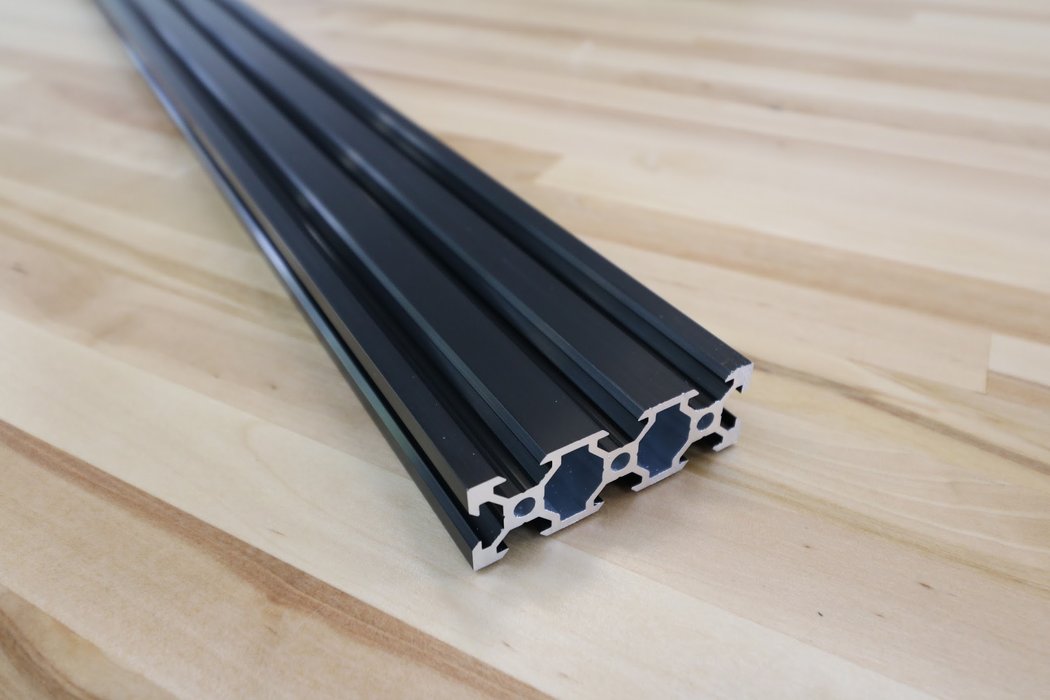

Profile: 20mm x 60mm V-Slot
Material: 6063-T5 Aluminum
Surface Treatment: Black anodized
Mass: 1.711kg
Volume: 629.2cm3
