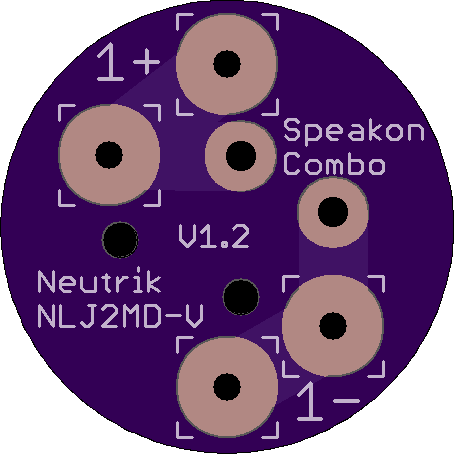

Neutrik Combo Adapter Round
by
bax.
2
layer board of
0.91x0.91
inches
(23.04x23.04
mm).
Shared on
July 19th, 2015 14:59.
Neutrik combo adapter round V1.2
The round board is the same diameter as the connectors barrel. The wires are first soldered to the board, then the board installed on the speakon connector. The entire assembly can then be installed on the chassis or cabinet. The installed wires should not protrude beyond the back surface of the board as the board sits flat on the connector.

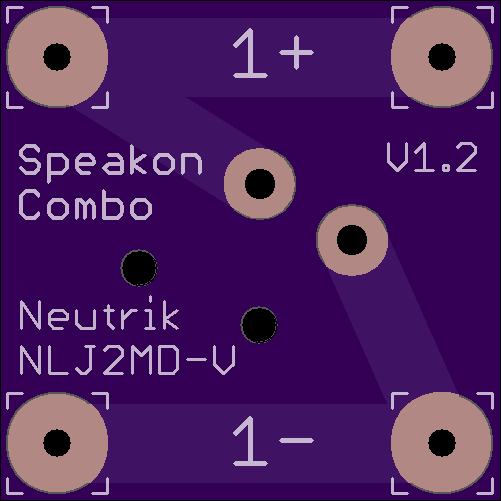

Neutrik Combo Adapter Square
by
bax.
2
layer board of
1.00x1.00
inches
(25.43x25.43
mm).
Shared on
July 19th, 2015 14:59.
Neutrik combo adapter square V1.2
Board must be installed after the Neutrik connector is installed on the chassis or speaker cabinet. The larger form factor over the round version of this board allows for easier connection of the wires to the board.

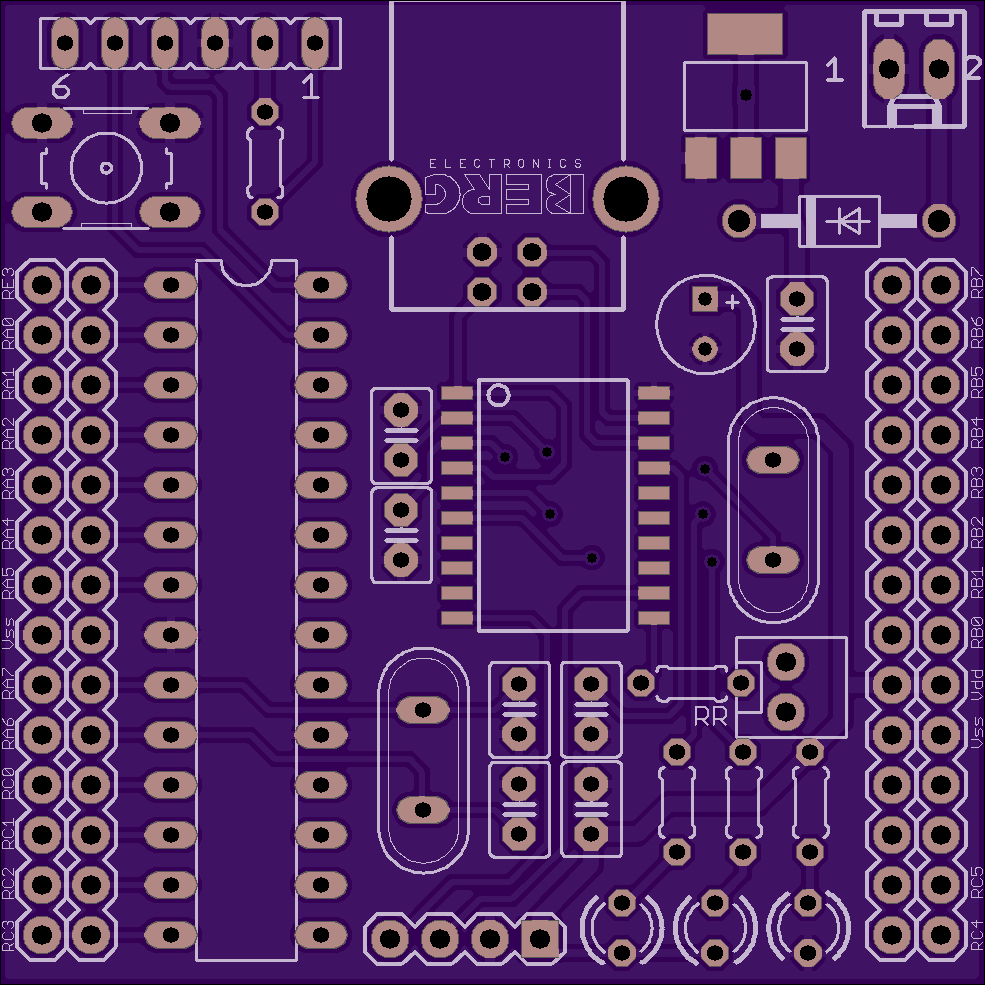

16F882 devboard
by
Rasyoung.
2
layer board of
1.97x1.97
inches
(50.01x50.01
mm).
Shared on
July 19th, 2015 14:02.
MCP2200 UART

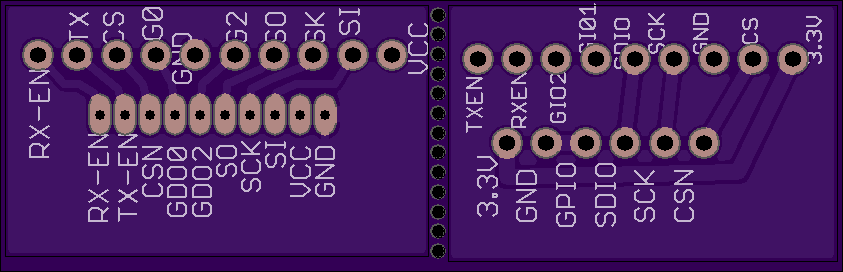

Multiprotocol adapter module board(A7105+CC2500)
by
Midelic.
2
layer board of
1.68x0.54
inches
(42.77x13.77
mm).
Shared on
July 19th, 2015 08:27.
Adapter pcb for using different RF modules in multiprotocol setup.In this case different A7105 harvested from V911TX and different CC2500 modules, the PCBA module from BG.

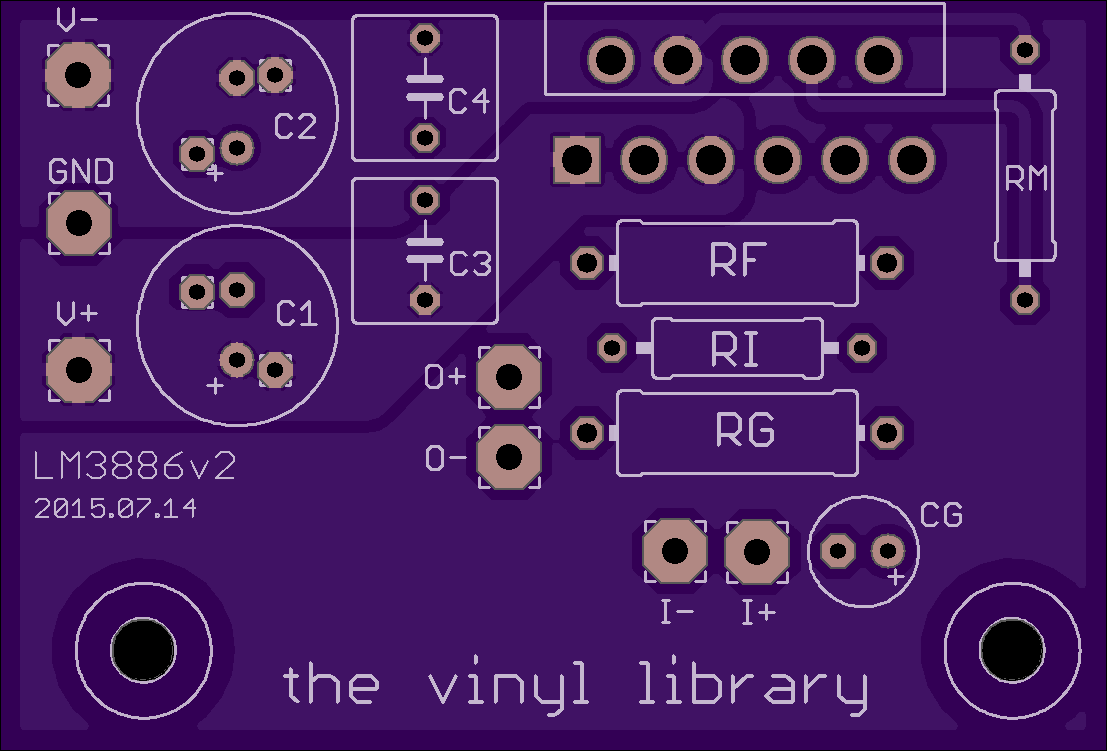

LM3886 v2
by
bloodystumps.
2
layer board of
2.21x1.50
inches
(56.21x38.10
mm).
Shared on
July 19th, 2015 05:01.
