Shared projects
usbthing
by
Merlin04.
2
layer board of
1.25x0.62
inches
(31.65x15.62
mm).
Shared on
October 16th, 2016 18:12.

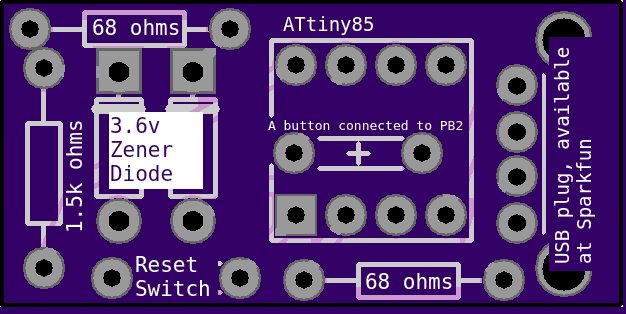

An ATtiny85-based USB Thing. It can be used with Micronucleus to provide usb programming. It is meant to be a programmable mouse/keyboard (eg. to wiggle the mouse once every few seconds) but you could use it for other things.
Circuit from http://www.instructables.com/id/Digispark-DIY-The-smallest-USB-Arduino/
Component values:
Button Breakout
by
Merlin04.
2
layer board of
0.56x0.32
inches
(14.10x8.10
mm).
Shared on
September 11th, 2016 16:52.
Easily wire pushbuttons.
Tiny Pi Zero Audio
by
Merlin04.
2
layer board of
0.63x0.75
inches
(16.10x19.05
mm).
Shared on
August 24th, 2016 21:03.
A very very very tiny audio board for Raspberry Pi Zero. Component values at http://merlin04-audio-board.weebly.com/. Usage at https://learn.adafruit.com/adding-basic-audio-ouput-to-raspberry-pi-zero/pi-zero-pwm-audio.
PLEASE NOTE: On the output, L and G are swapped. Thanks to Alfie_T on Sudomod Forums for catching this!
