Gotek Sound Mod v3

by Martin8bity.

2 layer board of 0.60x0.70 inches (15.27x17.78 mm).
Shared on November 1st, 2015 10:56.

Floppy sound emulation for Gotek USB floppy drive emulator

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

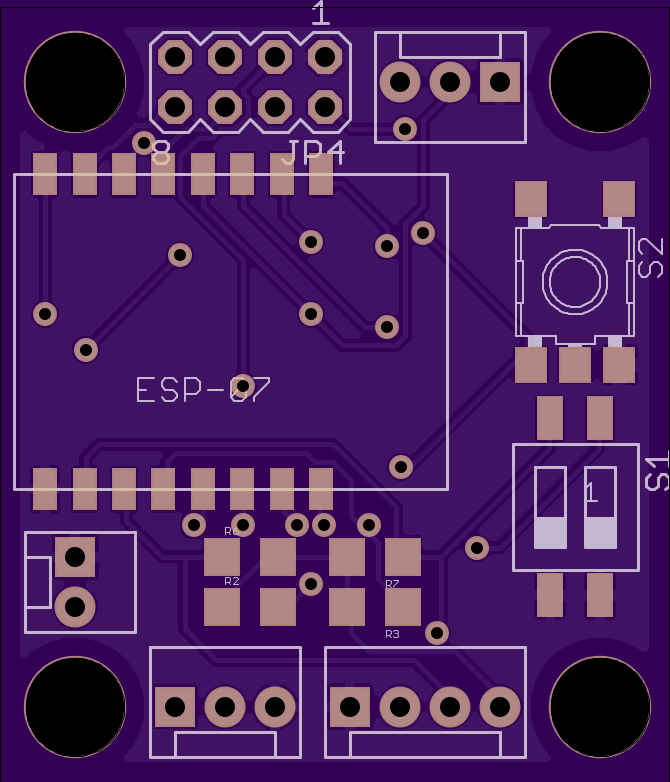

esp8266-07

by Kowalski.

2 layer board of 1.34x1.55 inches (33.99x39.37 mm).
Shared on November 1st, 2015 09:25.

esp-07 peripheral board

First release. Sources available @ https://github.com/gerbert/esp8266-07

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

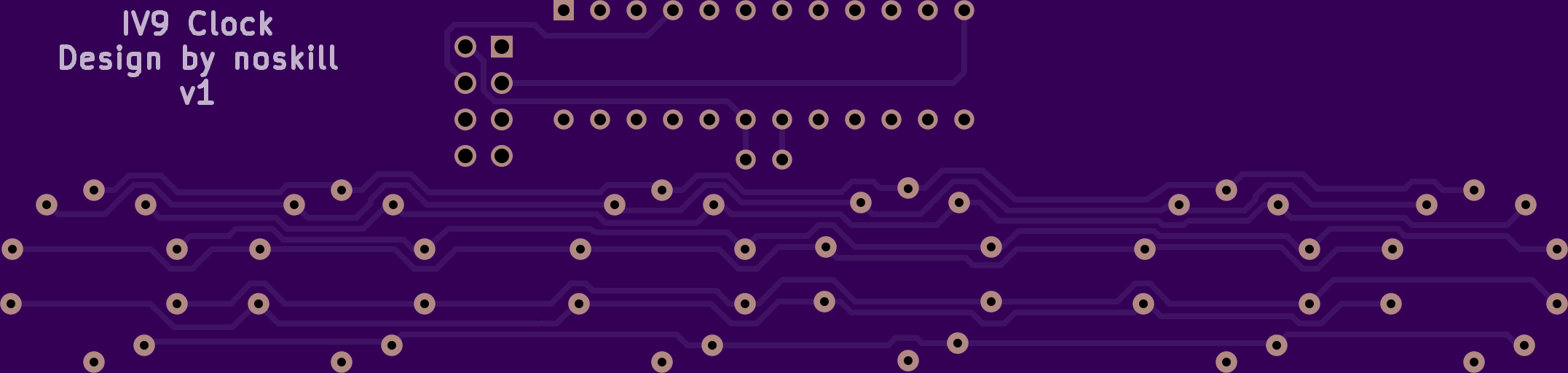

iv9.zip

by noskill.

2 layer board of 4.36x1.16 inches (110.64x29.36 mm).
Shared on October 31st, 2015 15:35.

An IV9 (ив-9) numitron clock PCB ! The max driver recieves the data via the header and displays the current time.

Made by @_noskill

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

PH_interface

by gcharles.

2 layer board of 1.58x1.31 inches (40.18x33.38 mm).
Shared on October 31st, 2015 12:17.

atlas ph interface

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

slave

by gcharles.

2 layer board of 2.33x1.74 inches (59.21x44.22 mm).
Shared on October 31st, 2015 12:17.

ph temp

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
