Click Clack Mk 1.0
by
schizobovine.
2
layer board of
4.00x1.00
inches
(101.60x25.43
mm).
Shared on
October 9th, 2015 03:28.
Simple board to combine a Teensy and some Cherry MX switches as a macro key bar. Has i2c header for attaching display.
CC-4.0-BY-SA License, EAGLE design files on github:
RC XT Charging & Balance Board
by
whitenoise.
2
layer board of
1.93x1.70
inches
(49.07x43.18
mm).
Shared on
October 9th, 2015 02:44.
RC XT Charging and Balance Board BOM Parts list for one (1) PCB
Note: There are two different versions of XH headers: one with a tab and one without. The one listed below is the one without the tab. The tabbed one will not fit. The crimp allows for 22AWG wire to be used as the smallest size. There is another version that will fit 26AWG Wire as a minimum. My version uses 22AWG wire but smaller wire will also work. XT connectors need to be trimmed so they bottom does not stick out too far past the board.
7x JST-XH Connector Crimp: SXH-001T-P0.6 http://www.digikey.com/product-detail/en/SXH-001T-P0.6/455-1135-1-ND/527370
1x JST-XH 7 Position Female Connector Housing: XHP-7 http://www.digikey.com/product-search/en?mpart=XHP-7&vendor=455
1x JST-XH 3 Position Male Header: B3B-XH-A(LF)(SN) http://www.digikey.com/product-search/en?mpart=B3B-XH-A%28LF%29%28SN%29&vendor=455
1x JST-XH 4 Position Male Header: B4B-XH-A(LF)(SN) http://www.digikey.com/product-search/en?mpart=B4B-XH-A%28LF%29%28SN%29&vendor=455
1x JST-XH 5 Position Male Header: B5B-XH-A(LF)(SN) http://www.digikey.com/product-search/en?mpart=B5B-XH-A%28LF%29%28SN%29&vendor=455
1x JST-XH 6 Position Male Header: B6B-XH-A(LF)(SN) http://www.digikey.com/product-search/en?mpart=B6B-XH-A%28LF%29%28SN%29&vendor=455
1x JST-XH 7 Position Male Header: B7B-XH-A(LF)(SN) http://www.digikey.com/product-search/en?mpart=B7B-XH-AM%28LF%29%28SN%29&vendor=455
1x Barrel Connector 2.1mm Male: PJ-037AH http://www.digikey.com/product-detail/en/PJ-037AH/CP-037AH-ND/1644547
1x Amass XT30 Male
1x Amass XT60 Male
1x Amass XT90 Male
1x Pair of Banana Plugs http://www.amazon.com/gp/product/B007QUYQSY?psc=1&redirect=true&ref_=oh_aui_detailpage_o04_s00
Recommended wire: 16AWG or 14AWG for main power and 22AWG or 24AWG for balance lead.

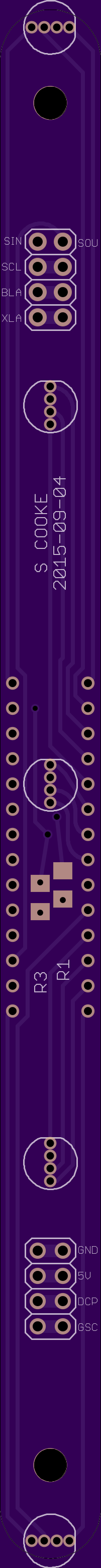

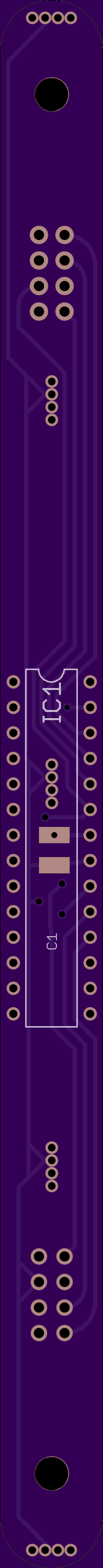

DIP TLC5940 breakout board
by
mason16.
2
layer board of
0.40x6.14
inches
(10.21x155.98
mm).
Shared on
October 9th, 2015 00:37.
DIP TLC5940 breakout board for 5 common anode 5mm RGB LEDs. LEDs are spaced 1.5" apart in a line. OUT9 and XERR pins are not connected. Good silk, tested and working, easy to chain together, two 1/8" mounting holes 5.4" apart.
Parts:
R3: R1206, 2.2k; R1: R1206, 10k (only required on one board in the chain); C1: C1206, 0.1uF; 16 header pins
Notes:
1) Solder C1 and centre LED prior to soldering the IC. 2) Use ~0.4mm solder if available.
Pinout:
Red {1, 3, 6, 11, 14}; Green {2, 4, 7, 12, 10}; Blue {0, 5, 8, 13, 15}
Use with:
https://oshpark.com/projects/7oBv8gw0

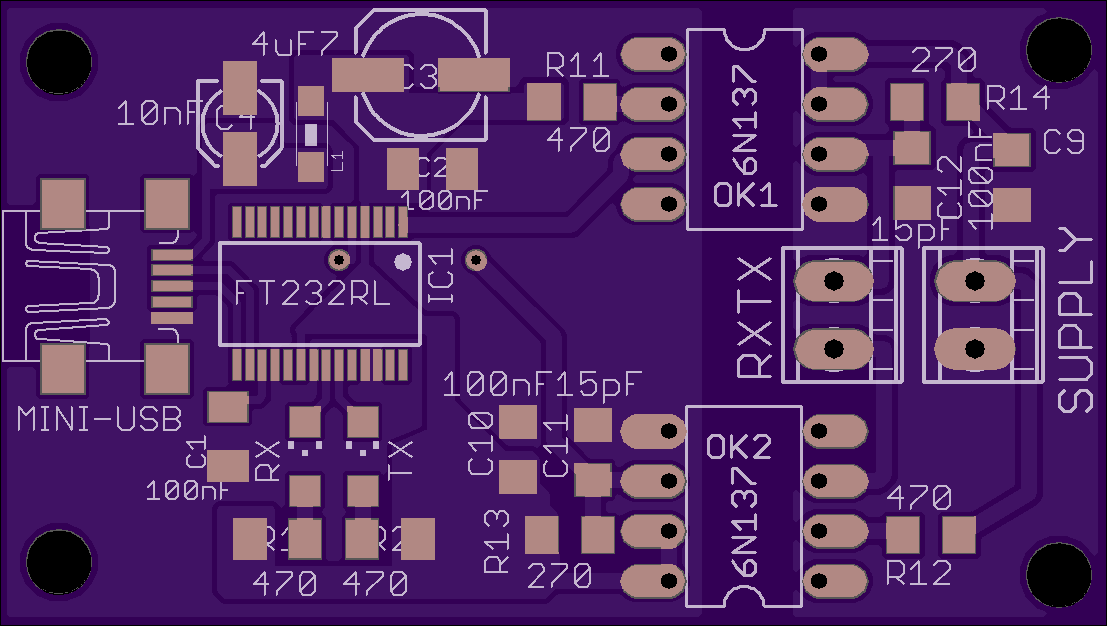

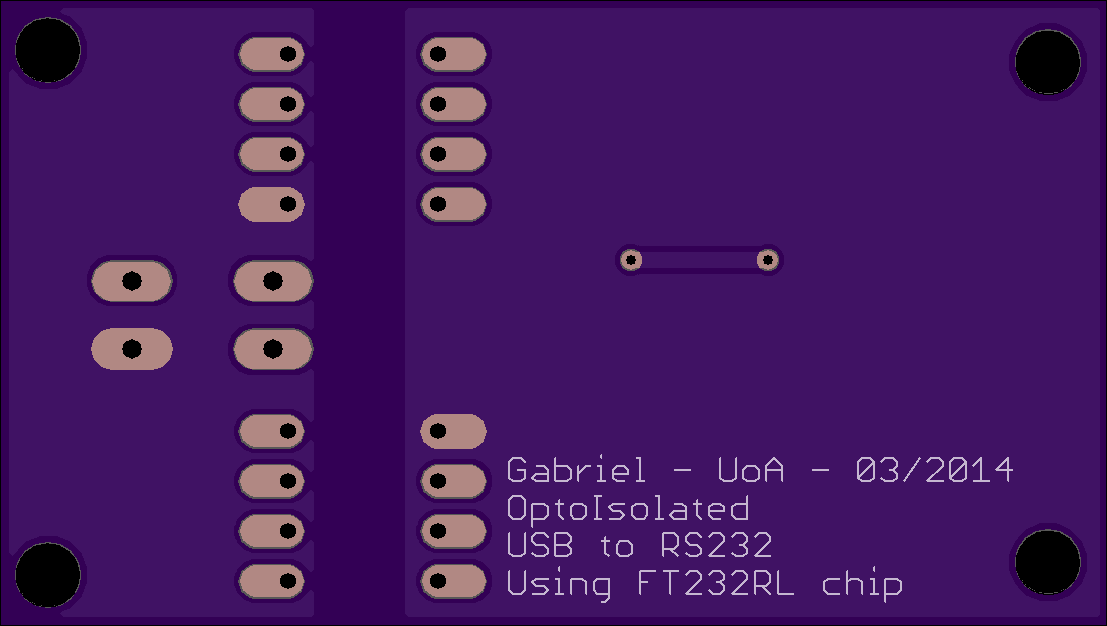

USB to RS232 interface
by
kakarot.
2
layer board of
2.21x1.25
inches
(56.21x31.75
mm).
Shared on
October 8th, 2015 21:39.
FT232RL with optoisolators
RCD 'T-Box' v1.0 rev 4 - (RX5808 Pro Diversity OLED)
by
tupoar.
2
layer board of
3.84x2.15
inches
(97.51x54.51
mm).
Shared on
October 8th, 2015 17:38.
Revision 4 of my non-SMD pcb designed for use with rx5808-pro-diversity project started by Crazyshea.
Changelog:
Rev 4:
Added 5v regulator to the rear of the board. Requires ‘DSN-MINI-360’ adjustable step down regulator.
More Pro Mini pin corrections
Rev 3.1:
Minor adjustments to routing
Minor changes to 100k pull down resistors.
Rev 3:
Fixed hole spacing for Pro Mini
Fixed DTR, TX, RX etc ports as they were reversed
Swapped Up and Down Buttons.
Added 100K pull down resistors on RSSI lines
Added extra ground and vcc points for pro mini
Corrected A5 and A4 conenctions
Rev 2:
- Repositioned via holes
Rev 1:
- Initial version
Details can be found on
RCGroups: http://www.rcgroups.com/forums/showthread.php?t=2477752
and Github: https://github.com/sheaivey/rx5808-pro-diversity/blob/master/docs/oled-arduino-nano.md https://github.com/RCDaddy/T-Box
