Simpleduino MKIII
by
w4wlc.
2
layer board of
2.78x1.22
inches
(70.66x31.06
mm).
Shared on
June 25th, 2015 01:16.
Tested-OK

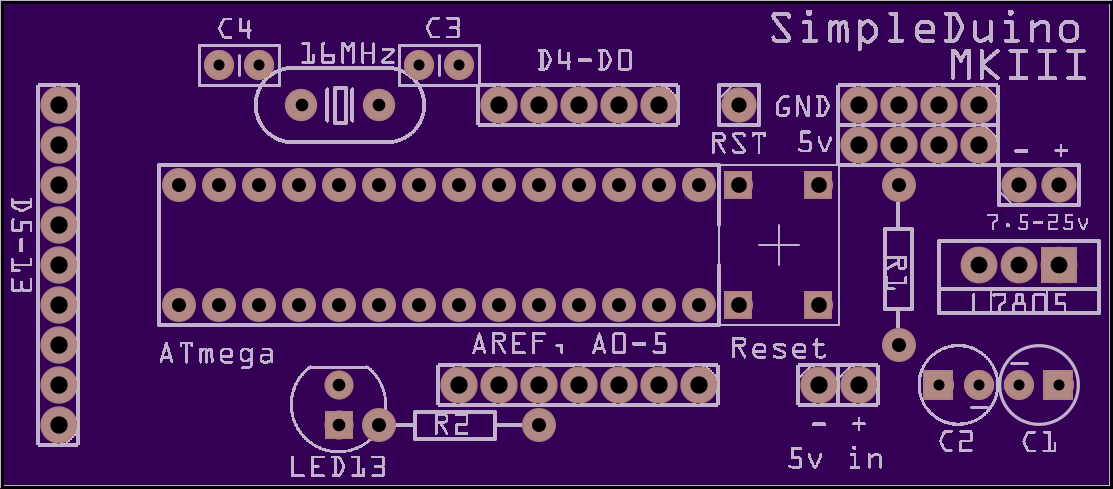

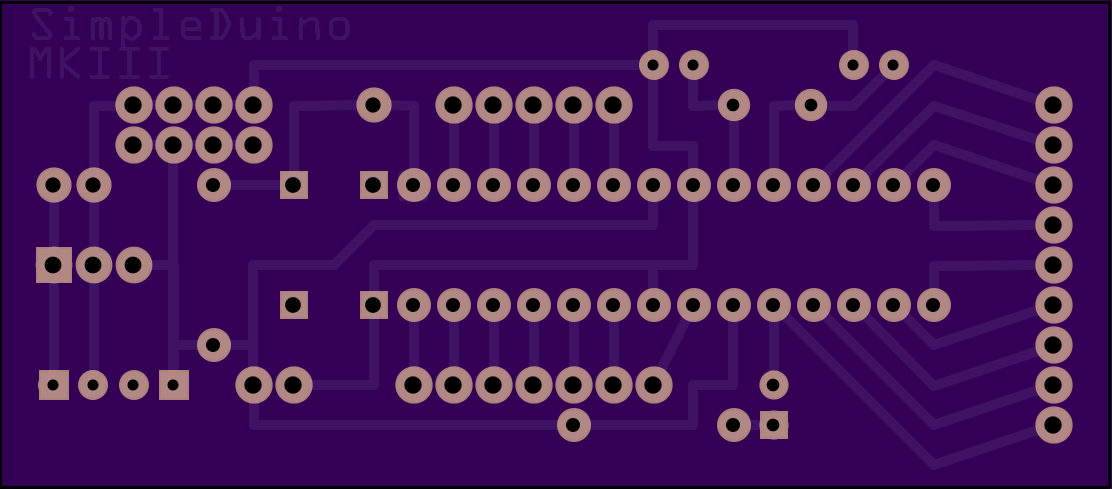

Small scale Arduino
This circuit and PCB by
Jim Valentine
Margate, UK
http://www.thevdm.com/
PCB found at http://fritzing.org/projects/simpleduino-single-sided-arduino-clone
The PCB here is the MKIII version.
Parts List
ATmega168 or ATmega328
1x 16MHz crystal
1x 5mm LED
1x momentary button
Your choice of male or female headers
L7805 or LM7805 voltage regulator C1,C2 = 10uF C3,C4 = 22pF R1 = 10k R2 = 220 ohm Note: No USB or Load interface
TS520DigRead
by
w4wlc.
2
layer board of
2.76x2.11
inches
(70.10x53.62
mm).
Shared on
June 25th, 2015 01:12.
Tested-OK

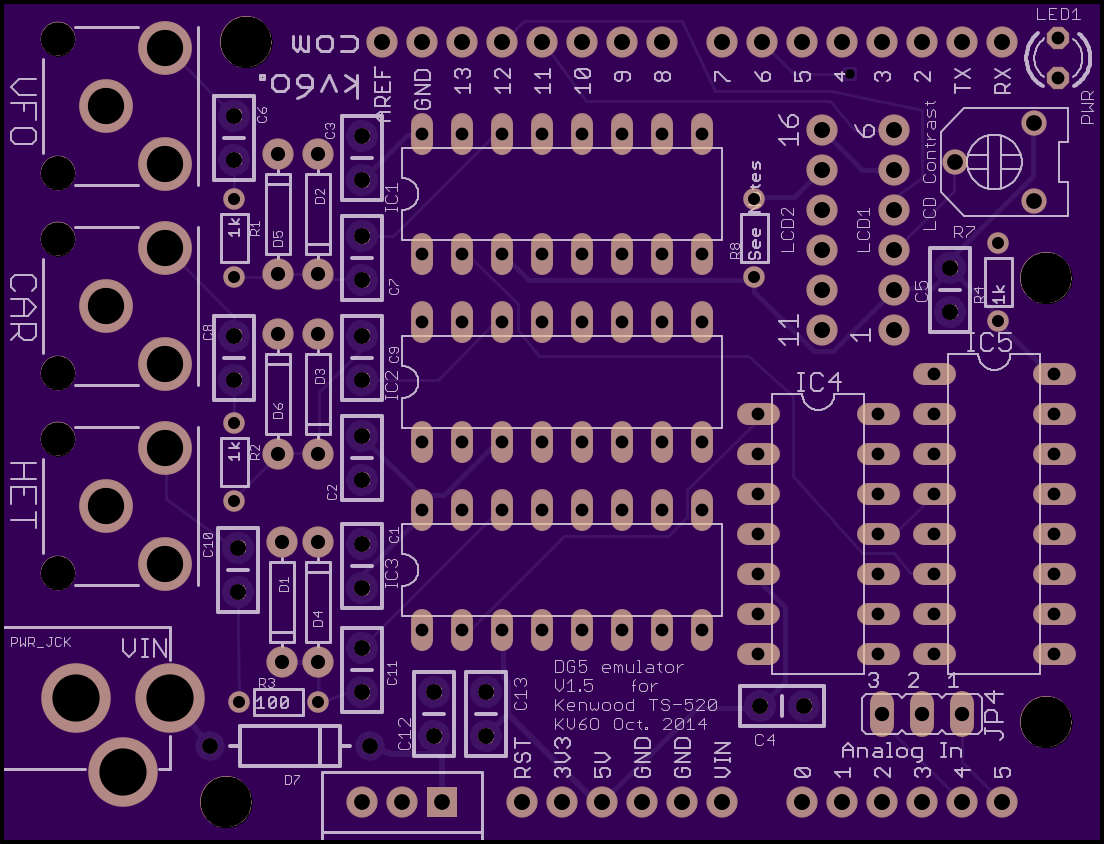

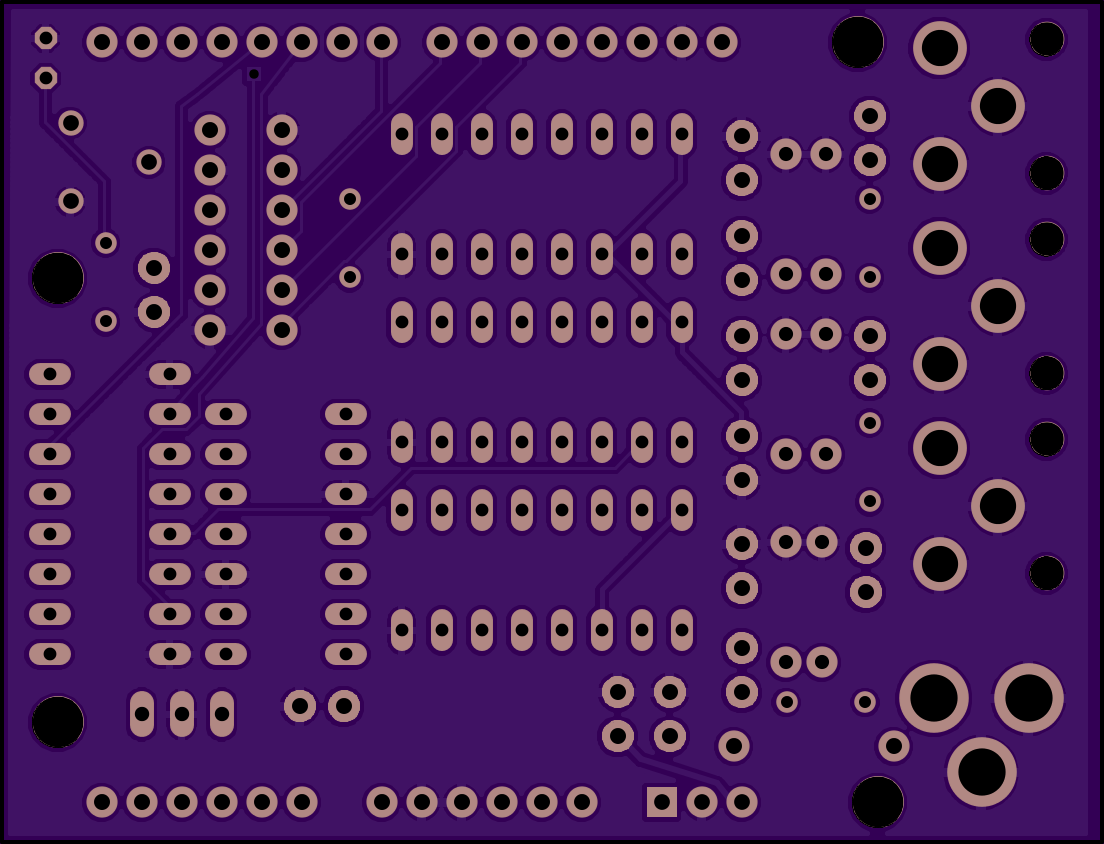

Digital Readout for Kenwood TS-520S
This PCB was designed by Steve KV6O
http://www.kv6o.com/wordpress/projects/kenwood-dg5-emulator/
Parts Info:
http://www.mouser.com/ProjectManager/ProjectDetail.aspx?AccessID=03394fdd5d – Mouser parts, includes most of the components.
http://sfe.io/w97558 – SparkFun parts, includes RCA jacks, LCD display, 4″ jumpers for the display, etc.
The LCD is the most expensive part in the build (besides an Arduino), if you have one already the parts are about $20. Less if you have a well stocked parts bin. Arduino’s can be had for less than $10 on eBay, and the LCD display (a 16×2, HD44780 based display – very common) can be had for a few bucks if you look around and can wait on shipping.
PSoc 4 QFN breakout
by
MCaracin.
2
layer board of
1.32x0.63
inches
(33.53x16.03
mm).
Shared on
June 25th, 2015 00:07.
DRV8837.BrushedMotorDriver.V02
by
PeskyProducts.
2
layer board of
0.71x0.81
inches
(17.93x20.47
mm).
Shared on
June 24th, 2015 20:30.
Simple DC brushed motor driver using TI’s DRV8837 1.8 A PWM-controlled H-Bridges. Board is designed to be mounted onto a Teensy 3.X although it can also be used on a breadboard. The H-bridges allow the motors to be driven both forward and reverse, with braking and coasting options as well. SLEEP pin HIGH enables the motors. Added zero resistor jumper to connect VM and VCC and added GND vias.
ESP8266 Relay Board
by
tech2077.
2
layer board of
1.99x1.26
inches
(50.65x32.11
mm).
Shared on
June 24th, 2015 19:06.
KICAD Project in Download
