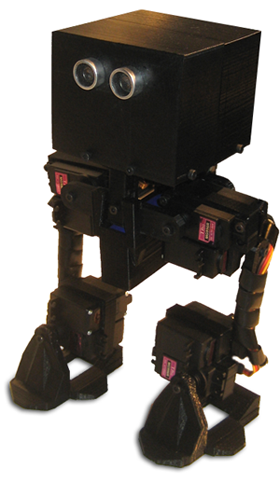

FOBO is the fourth prototype from Project Biped.  It is a self-contained, statically balanced bipedal robot. It has 8 DOF (degrees of freedom) and can walk around its environment and avoid obstacles using an ultrasonic range sensor.  All of the designs, instructions, source code, and parts lists are provided for free.  FOBO was designed to be easily made by anyone with a low cost 3D printer and an interest in learning about robotics.  Check out the FAQ if you have any questions.











Building FOBO             (detailed step by step animated instructions)
Programming FOBO    (extend functionality)
Operating FOBO          (operation and power)



 Microcontroller    Arduino Uno
 Actuation  8 DOF ( 55g servos)
 Sensors  Ultrasonic Range Sensor
 Parts Cost
   $263* : $188 parts + $75 consumables
 Plastic
 193 cc, 206 g ( about 1/5 of a spool)
 Build Time
  18 hours : 16 hours printing + 2 hours assembly
 Size
 9.5cm x 15.25cm x 24cm ( 4.5" x 6" x 9.5")
                                *excludes shipping costs

3D printed parts    (diagrams showing where each part goes)
Manifest               (spreadsheet including source and cost)
Custom Board    (alternate custom electronics board)
Tools                   (everything needed to build FOBO)


Model Files
Creative Commons License

FOBO model ( zipped blender file )
FOBO walking animation (  zipped blender file )
FOBO parts for 3D printing (zipped stl files)

Software Applications

FOBO poser (Arduino code, Windows desktop app)
FOBO Motion Control (Arduino code, Windows desktop app)
