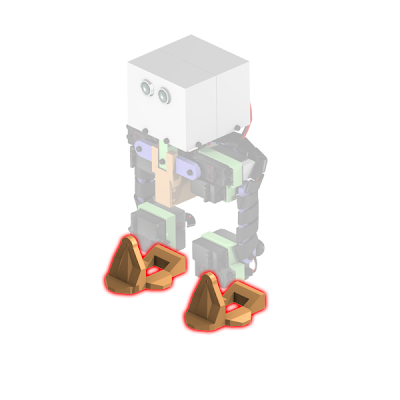

Part 1 : Foot

posted Jan 22, 2012, 11:49 AM by Jonathan Dowdall

Supports the robot.
Count 2
Plastic  20.4 cc
Print Time  100 min

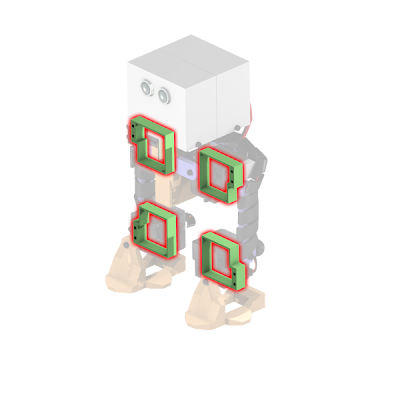

Part 2 : Servo Band

posted Jan 22, 2012, 11:47 AM by Jonathan Dowdall   [ updated Jan 24, 2012, 8:51 PM ]

Holds 2 servos together.  One servo can be screwed down and the other is friction fit.
Count 4
Plastic  4.5 cc
Print Time  23 min

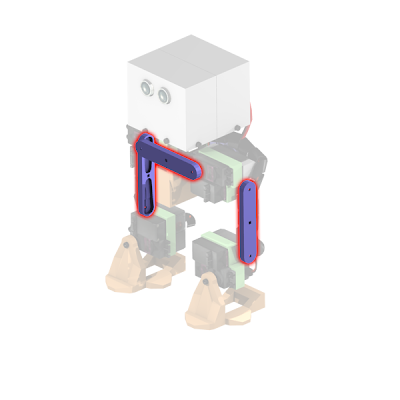

Part 3 : Servo Bracket

posted Jan 22, 2012, 11:43 AM by Jonathan Dowdall

Connects two servo horns together.
Count 3
Plastic  4.5 cc
Print Time  23 min

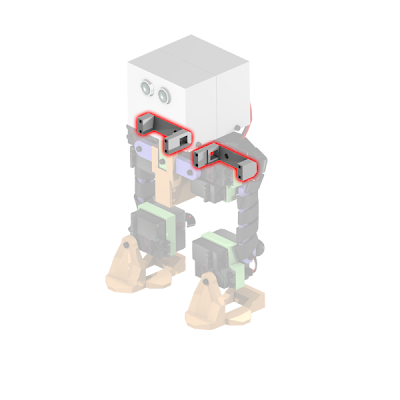

Part 4 : Servo Wrap

posted Jan 22, 2012, 11:41 AM by Jonathan Dowdall   [ updated Feb 5, 2012, 11:53 AM ]

Holds a nut in place on the axis of rotation of the servo.  This nut allows radial bearing to be held in place so that the bearing frame can support the connection of the two hip servos.
Count  2
Plastic  3.3 cc
Print Time  18 min

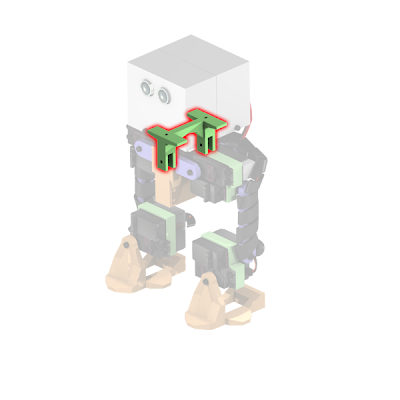

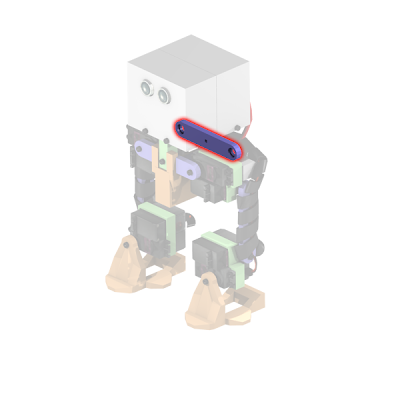

Part 5 : Bearing Frame

posted Jan 22, 2012, 11:37 AM by Jonathan Dowdall

Supports the joint between the left and right hip servo.  Holds 2 bearings.
Count 1
Plastic  4.9 cc
Print Time  26 min



Part 6 : Body Riser

posted Jan 22, 2012, 11:17 AM by Jonathan Dowdall

Supports the body of the robot.
Count 1
Plastic  6 cc
Print Time  56 min

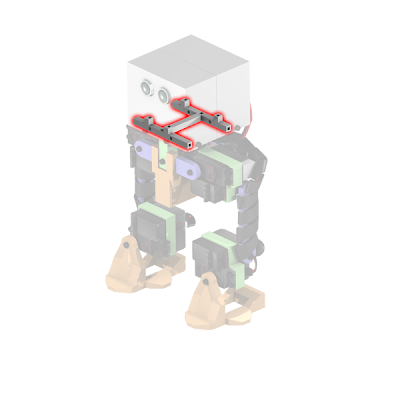

Part 7 : Electronics Frame

posted Jan 22, 2012, 11:13 AM by Jonathan Dowdall

Holds the Arduino Uno board and connects to the body riser, front body panel, and back body panel.
Count 1
Plastic  6.5 cc
Print Time  35 min

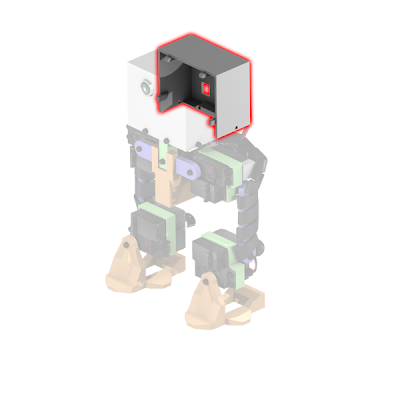

Part 8 : Back Body Panel

posted Jan 22, 2012, 11:05 AM by Jonathan Dowdall   [ updated Jan 22, 2012, 11:51 AM ]

Covers the back of the robot's body.  Holds the rocker switch and the fuse.
Count 1
Plastic  33.9 cc
Print Time  167 min

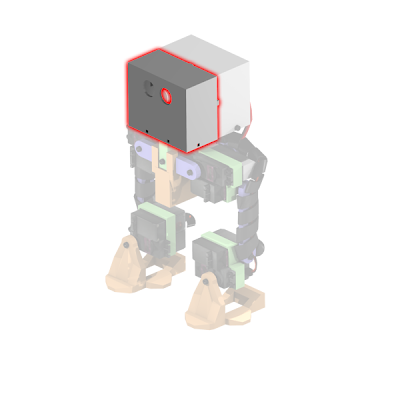

Part 9 : Front Head Panel

posted Jan 22, 2012, 10:34 AM by Jonathan Dowdall   [ updated Jan 22, 2012, 10:59 AM ]

Covers the front half of the head.  Holds the ultrasonic range sensor.
Count 1
Plastic  38 cc
Print Time  195 min

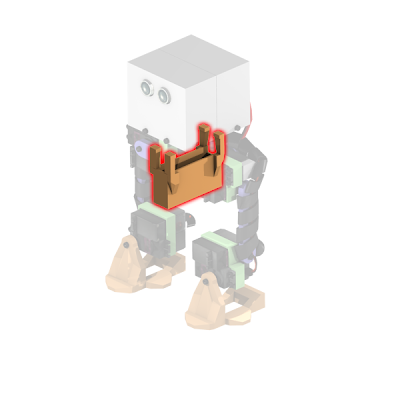

Part 10 : Battery Case

posted Jan 22, 2012, 10:32 AM by Jonathan Dowdall   [ updated Jan 22, 2012, 11:03 AM ]

Holds the lipo battery. Snap fits to the robot.
Count 1
Plastic  6 cc
Print Time  98 min
