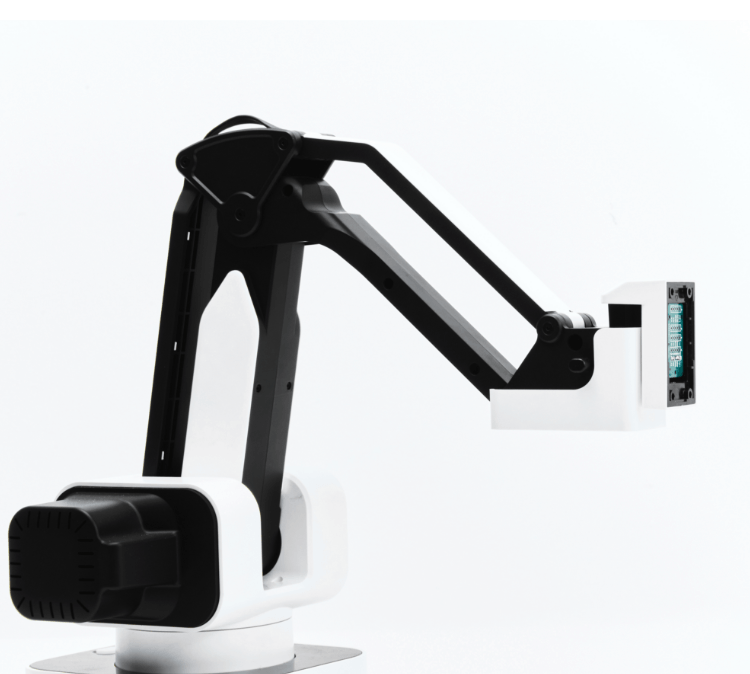

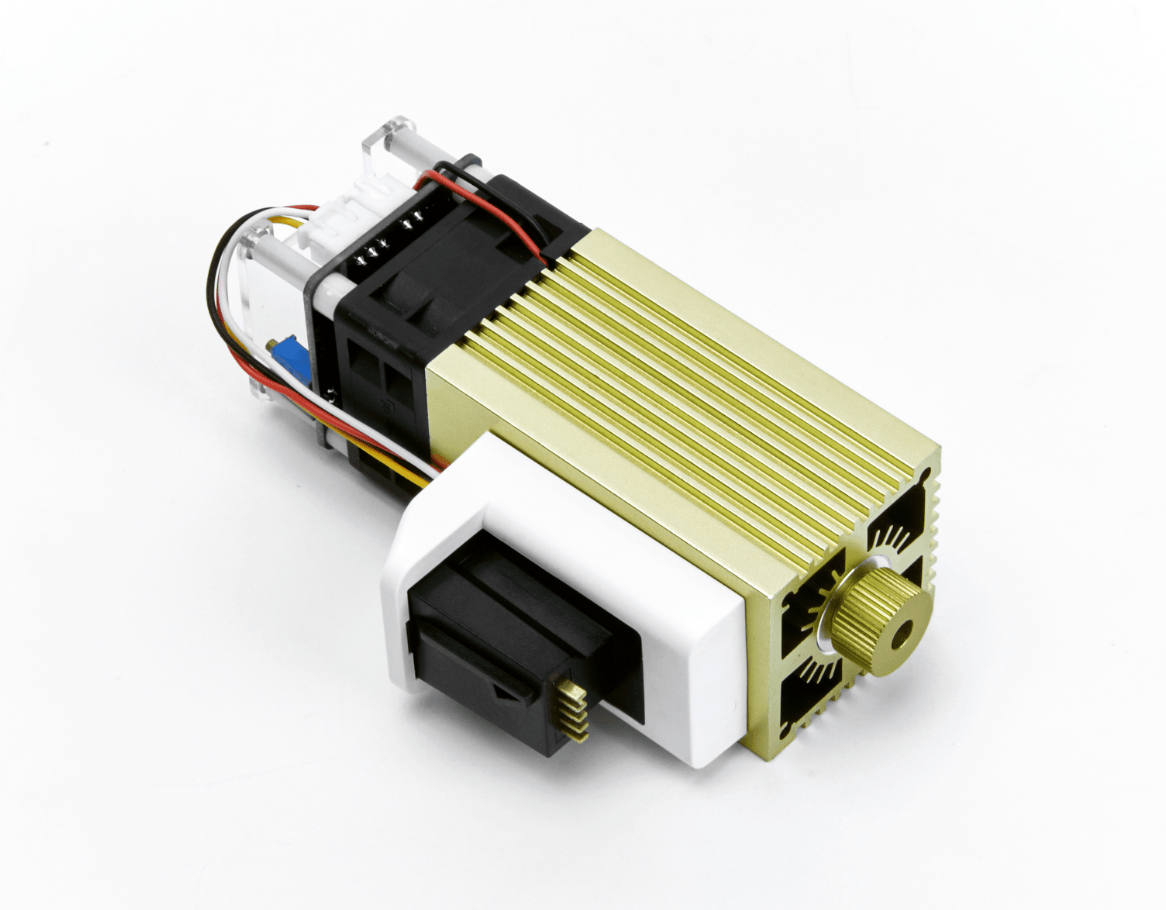

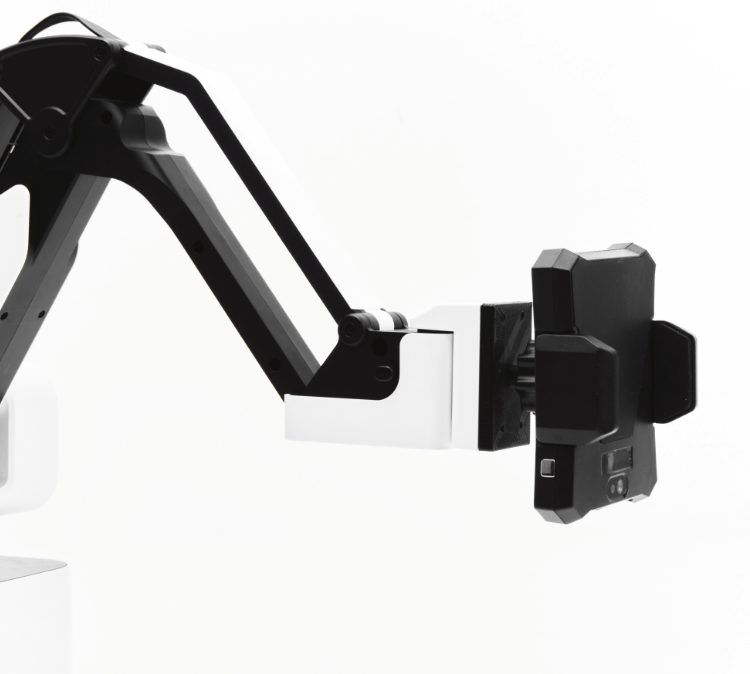

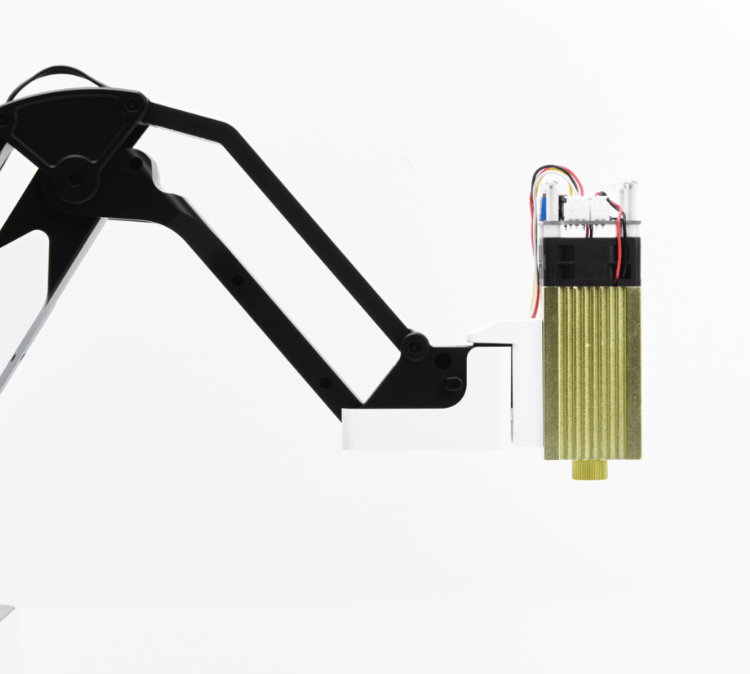

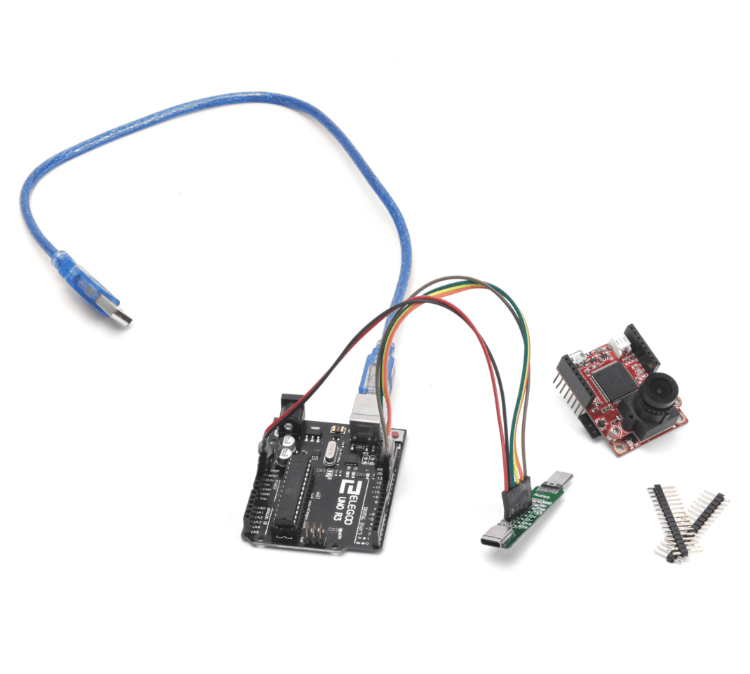

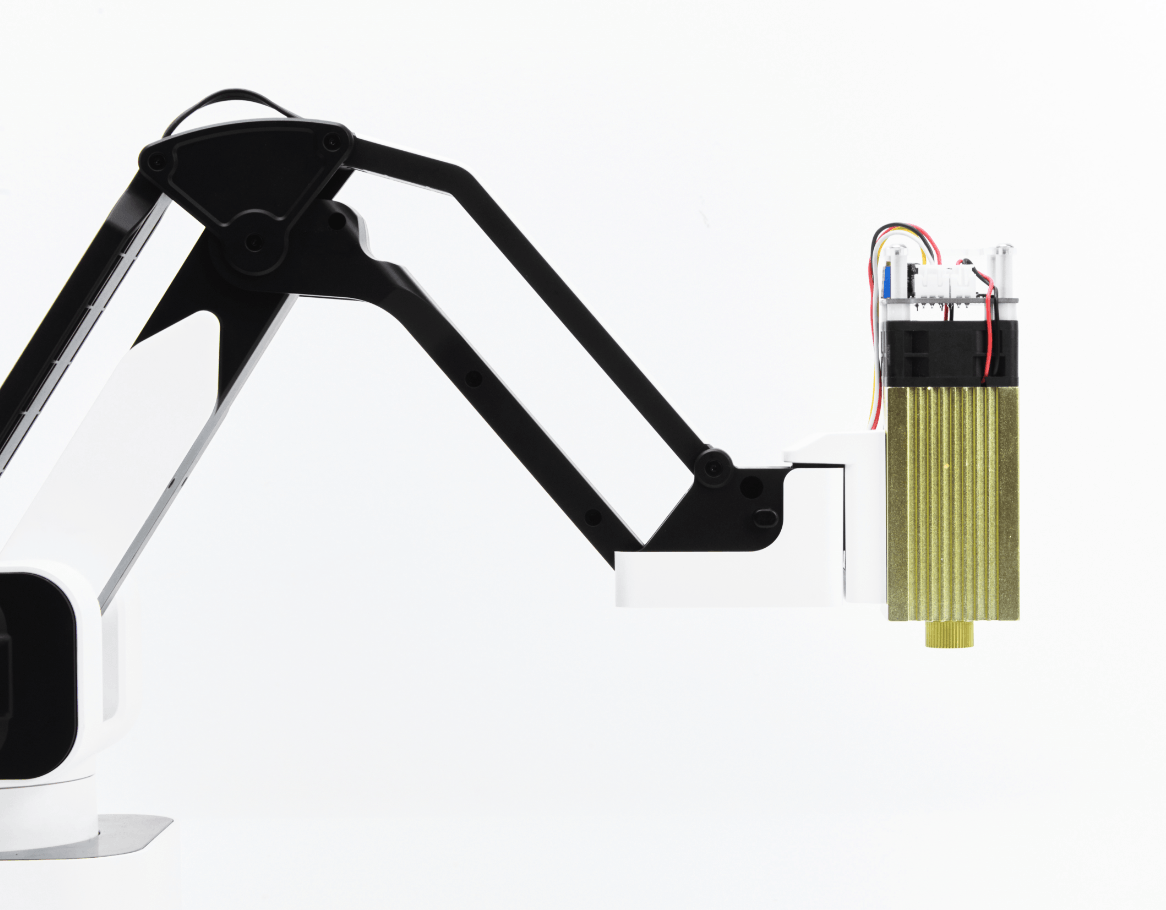

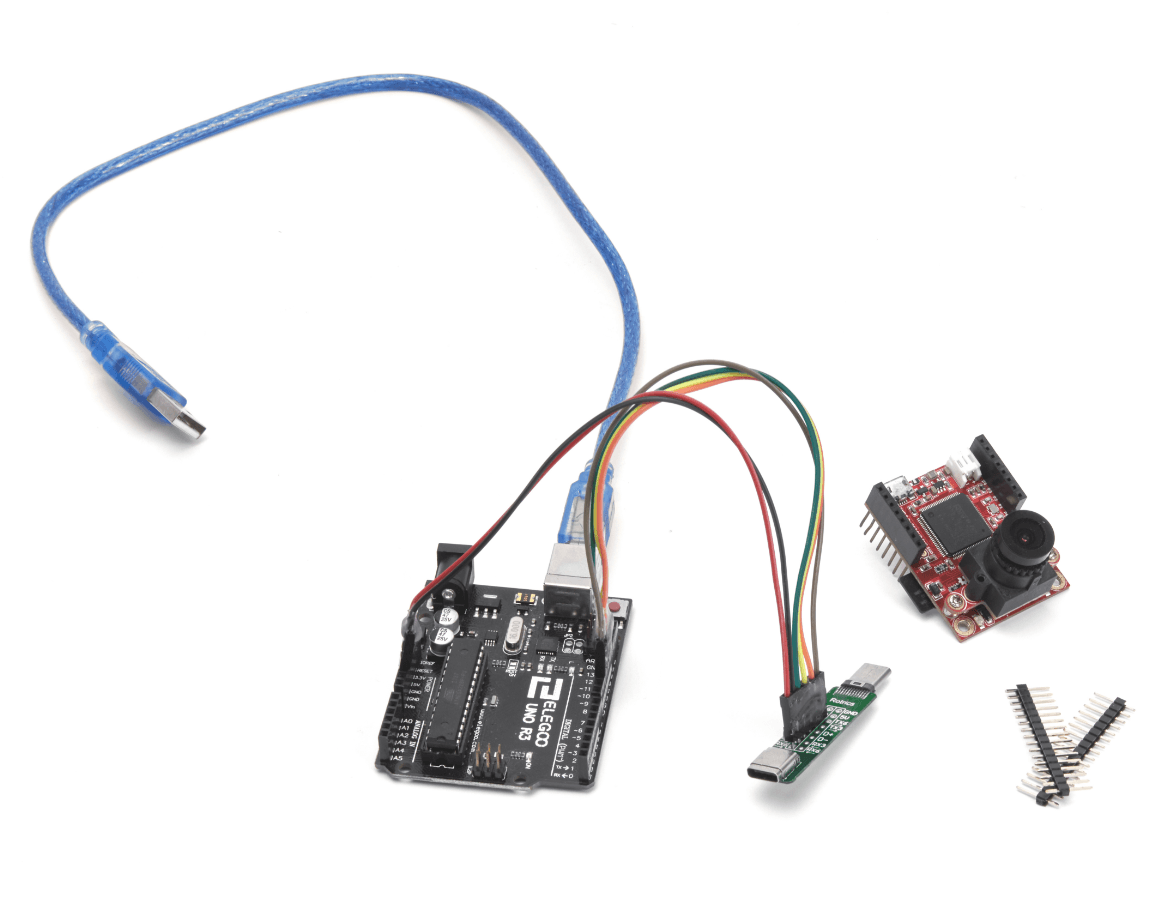

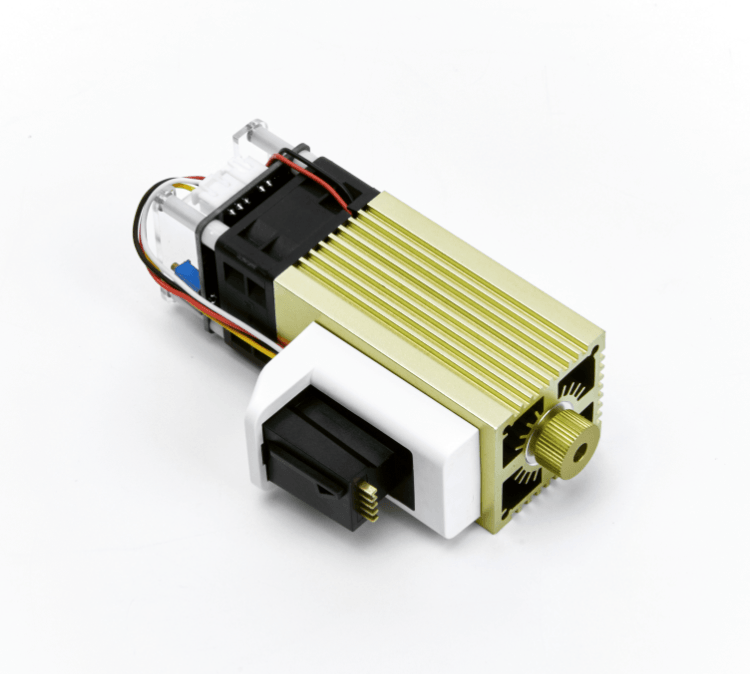

The DIY module allows you DIY your own DexArm modules such as a higher power laser module and motor gripper. The USB Type-C breakout board is a perfect connector to communicate with Arduino, Raspberry Pi, and OpenMV Cam.

Universal Module:

Weight: 26g

Dimensions: 33x33x54mm

Pinout: +12V, PWM, GND, GPIO_A9, GPIO_PA10

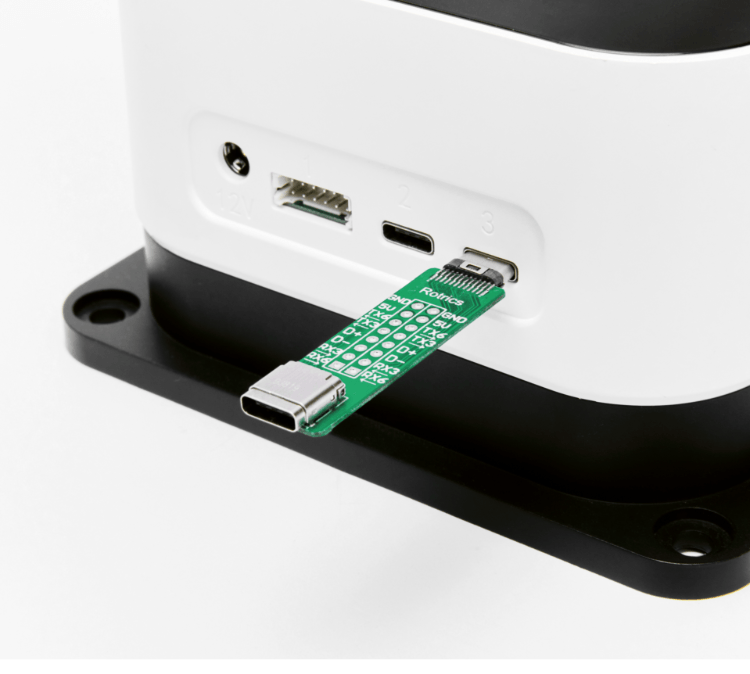

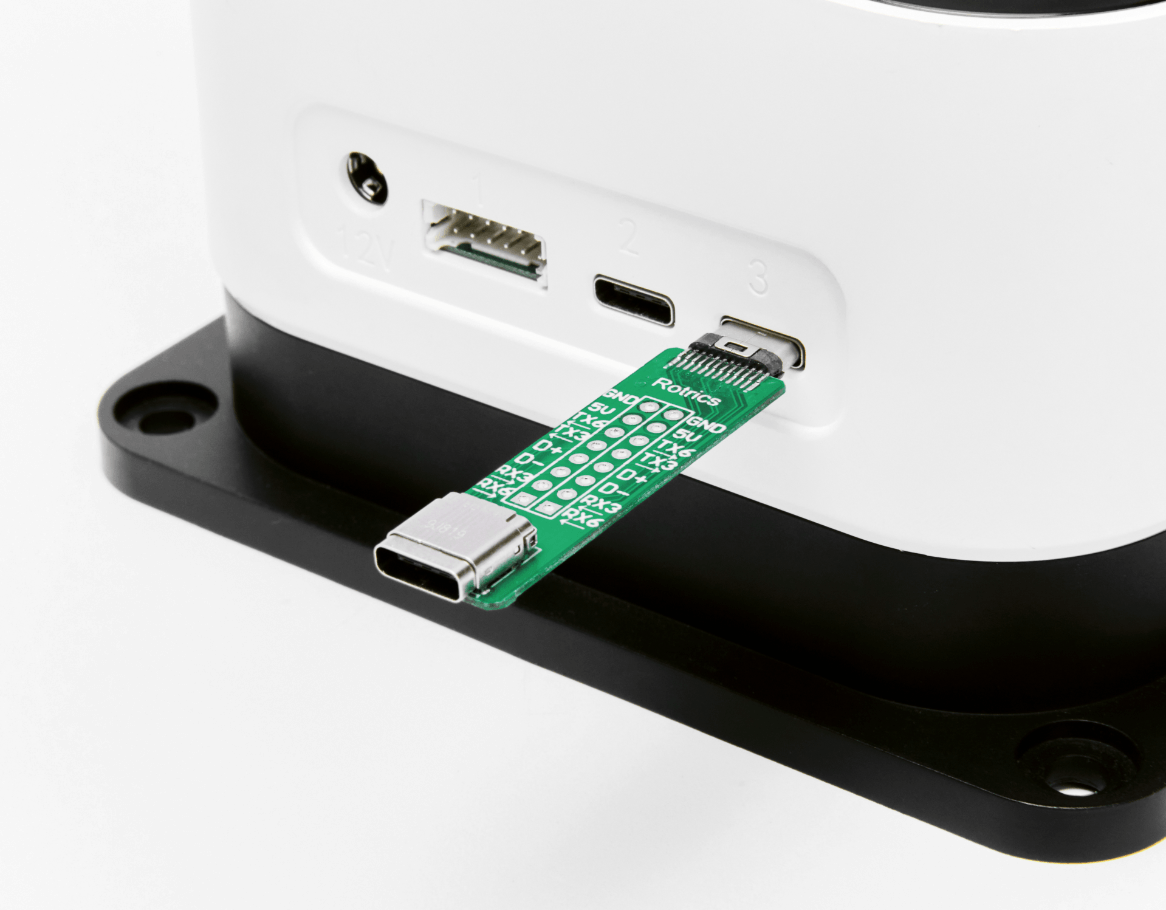

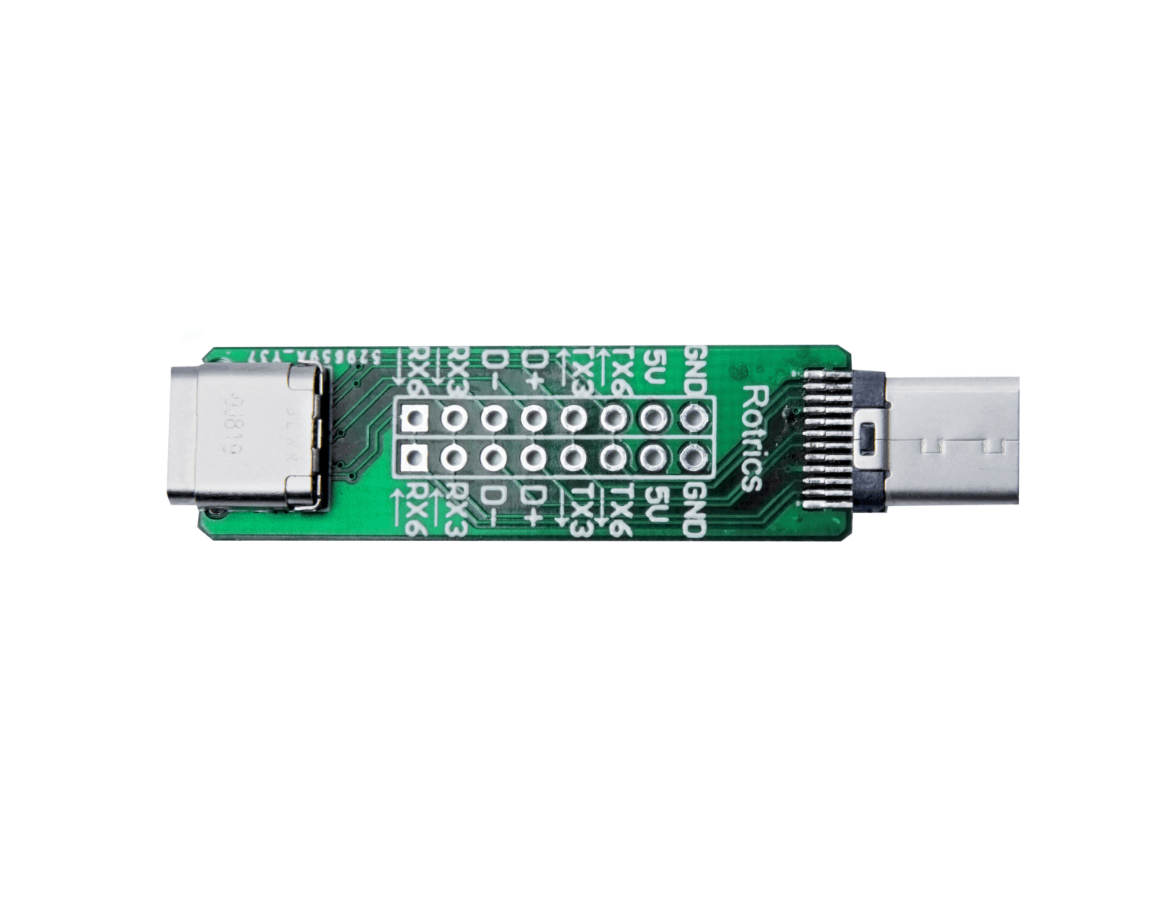

USB Type-C Breakout Board:

Weight: 10g

Dimension: 54x13x4mm

Pinout: GND, +5V, Tx3, Tx6, D+, D-, Rx3, Rx6

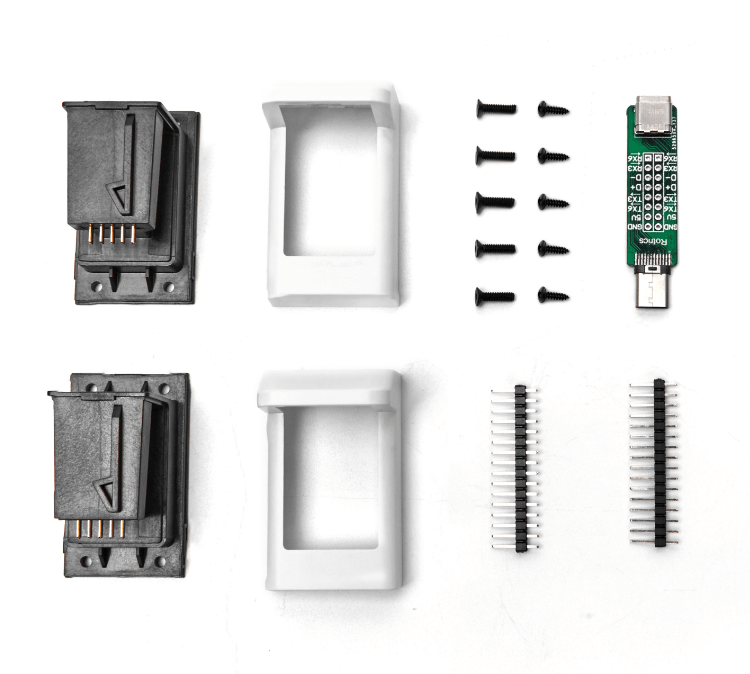

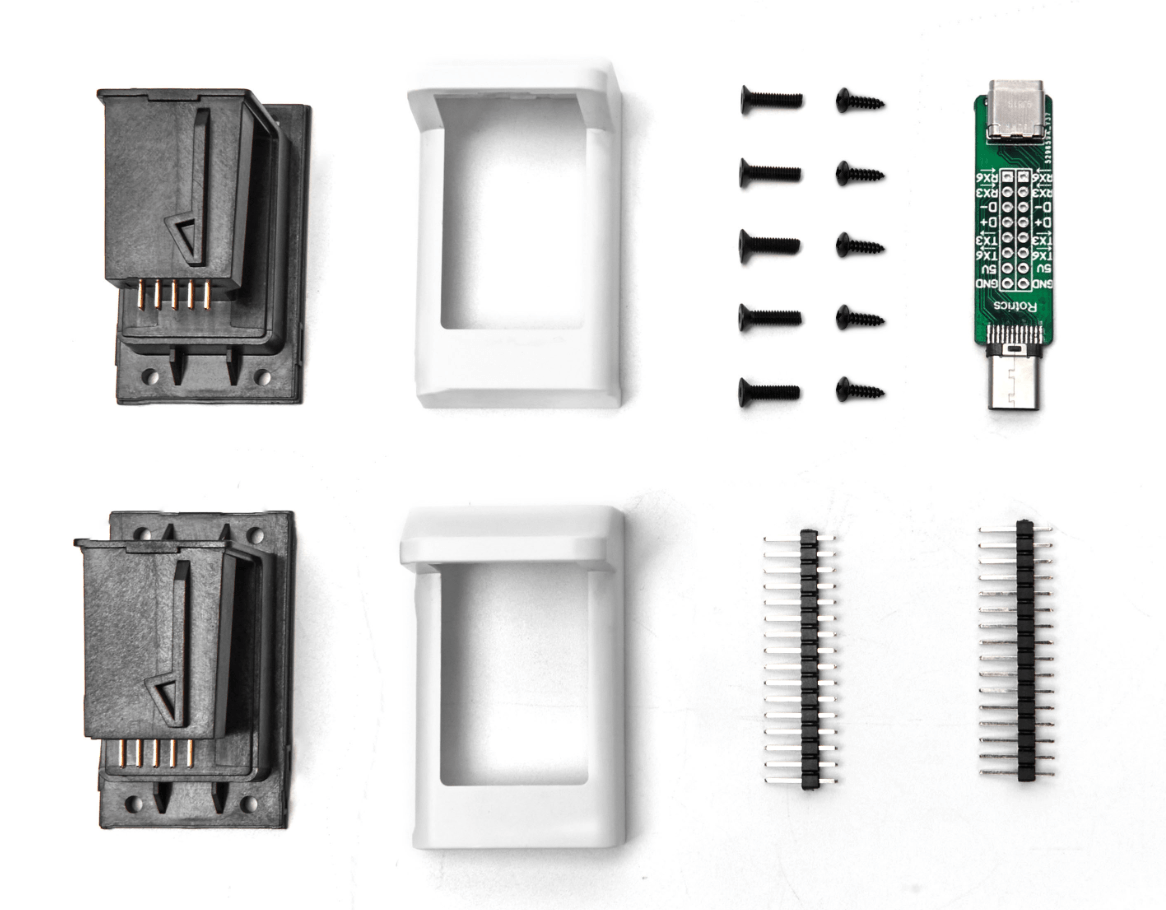

Universal Module x 2

White Module Part x 2

M2.5x6 Hex Screw x 8

USB Type-C Breakout Board x 1

8-pin Male-header Pin Strip x 2

Rotrics DexArm
