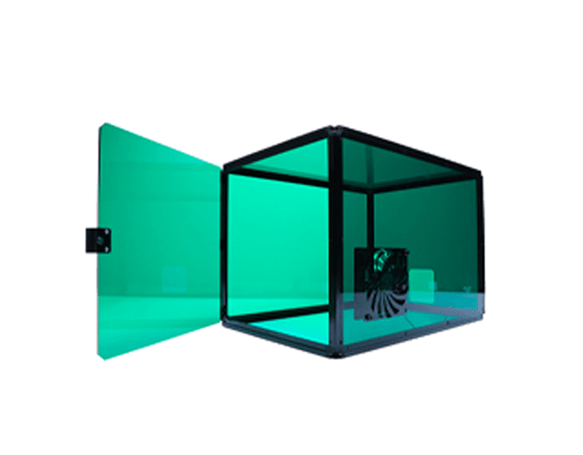

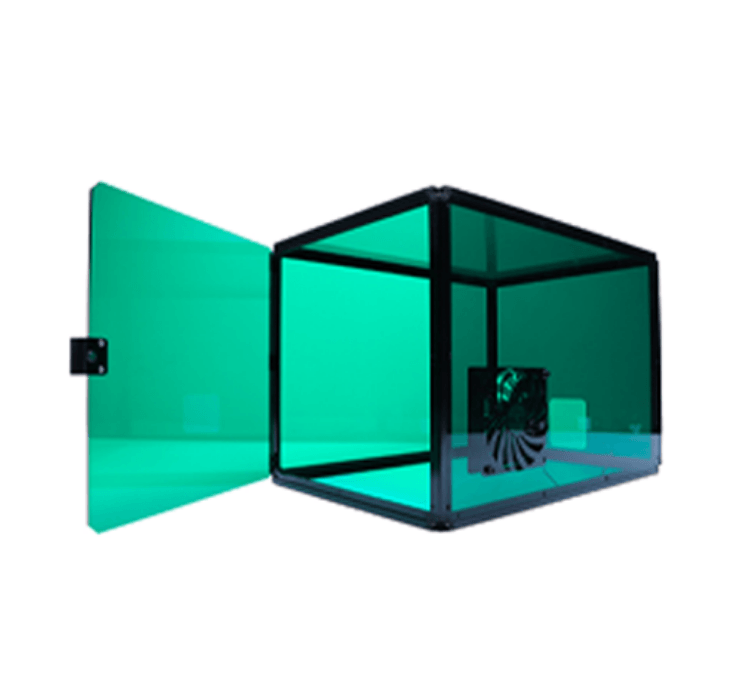

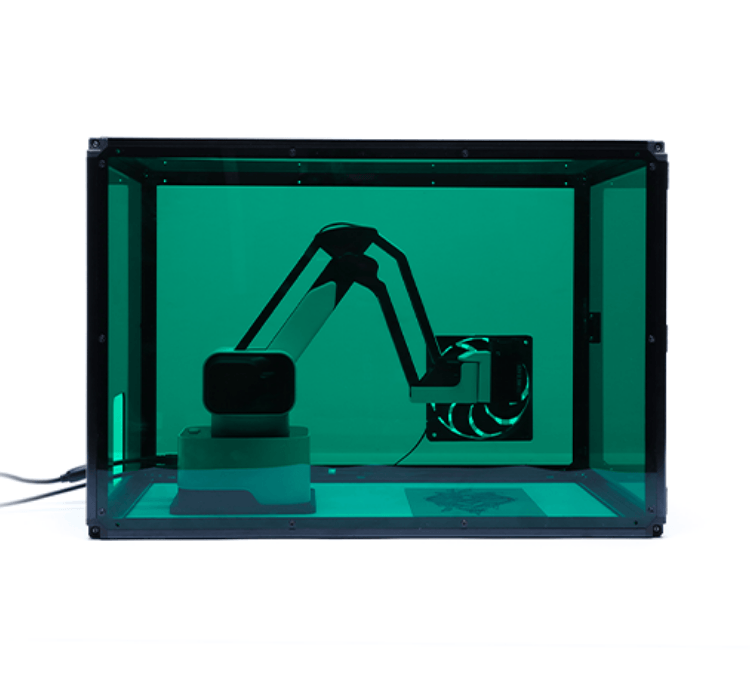

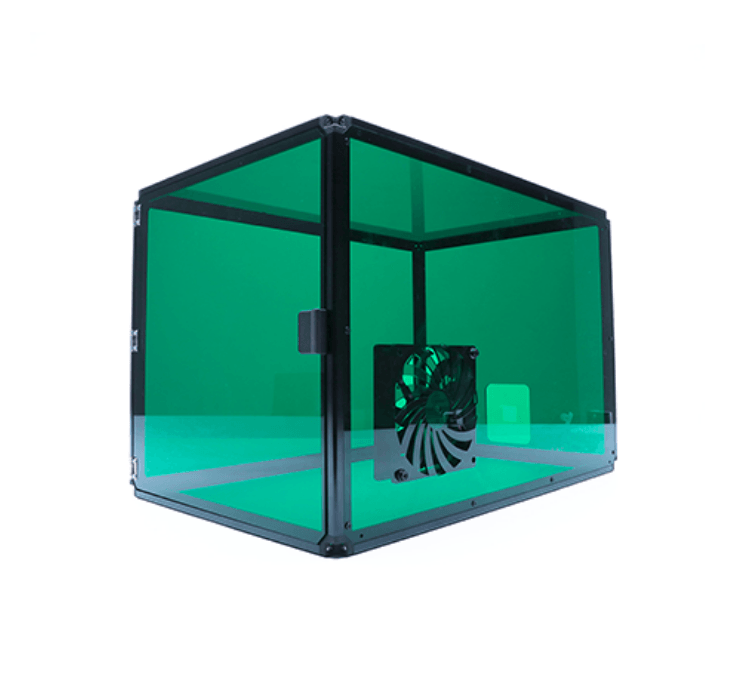

Safety Enclosure

Ultra protection for you and your family!

This safety enclosure is specially designed for Rotrics DexArm Laser Module. With ingenious safety interlock switch, effective extraction fan and well-selected PMMA plates, the safety enclosure offers overall protection for you and your family. Now you can enter your workspace without any special precautions!

USD

Shipping calculated at check out.

Engrave with safety

Ultra 360° protection for you and your family!

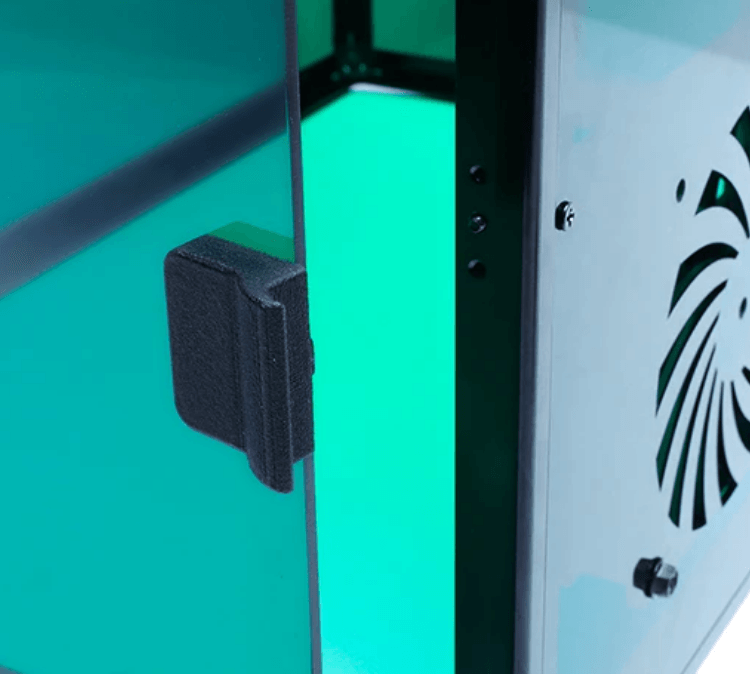

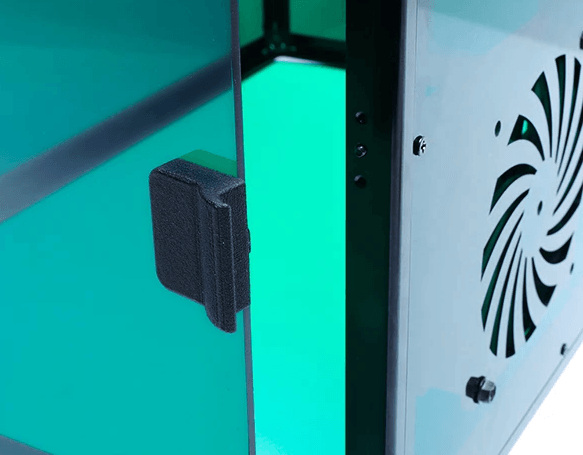

Safety Interlock Switch

The DexArm will automatically pause if the door is opened during laser engraving, it will resume working once the door is closed.

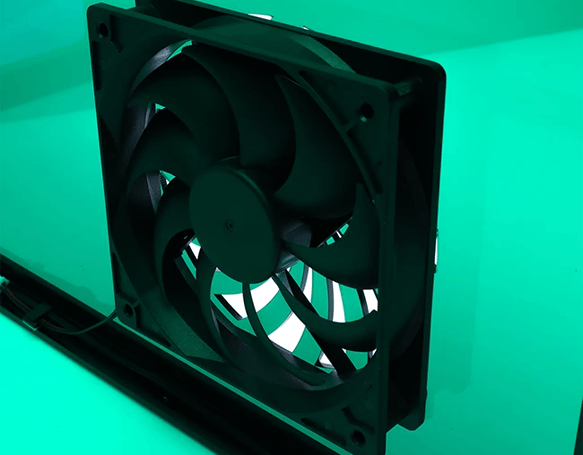

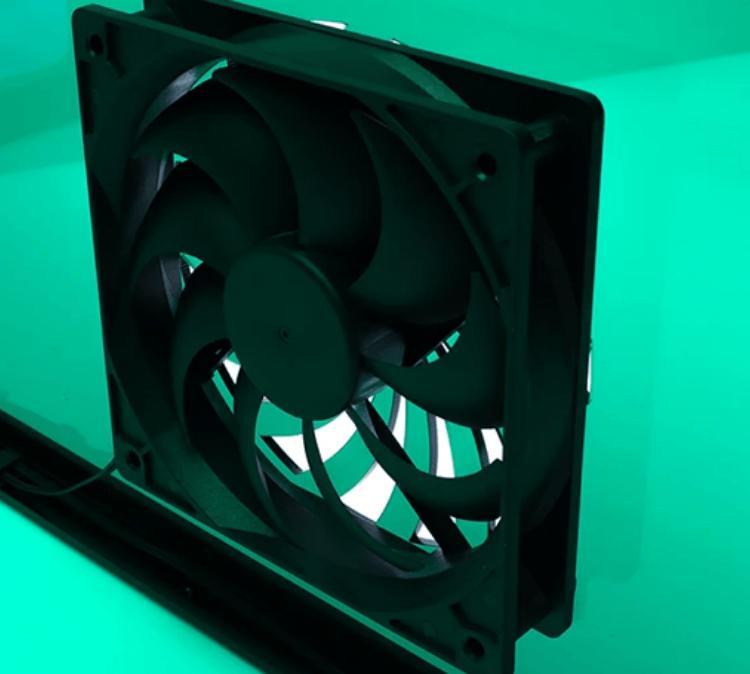

Smoke Extraction Fan

Efficiently remove hazardous fumes and smoke generated during laser engraving.

Aluminum Frame

Anodized aluminum frames make the closure more solid, durable, and stylish.

Safety Enclosure Videos

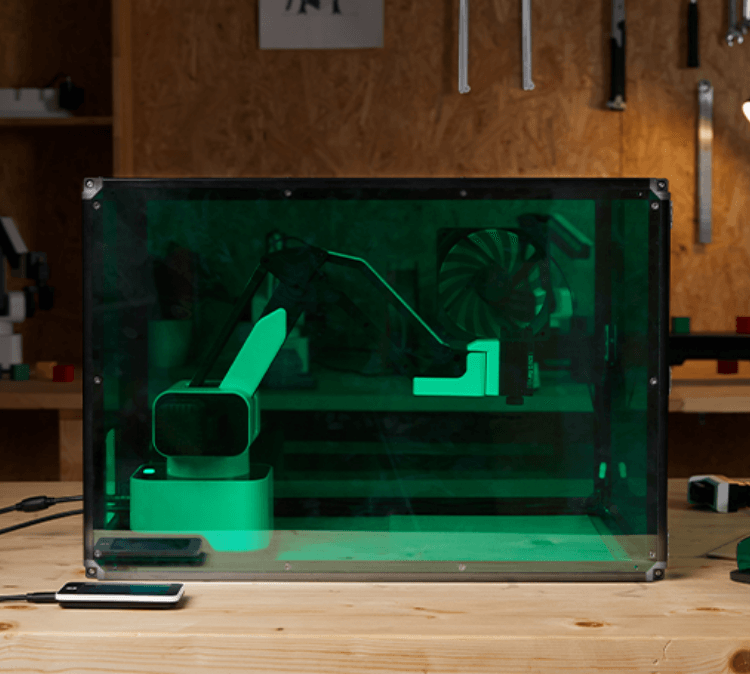

Laser engraving with safety enclosure

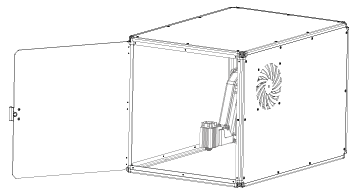

Safety Enclosure Specs

General

Dimensions

518 x 358 x 358mm

Weight

4.13kg /

Frame Material

Aluminum Alloy

Plates Material

PMMA(Acrylic)

Package Dimension

420 x 580 x 90mm

Package Weight

5kg

Safety Class

OD4+, for 220-450nm Laser

FAQs

Do I need a Safety Enclosure to use the laser module?

No, you can use the laser module without safety enclosure. It’s an optional accessory to keep your kids and pets safe from potential health damage.

What if the enclosure door is opened accidentally during laser engraving?

The safety interlock switch design can automatically pause the work when the door is opened at any time.

How to get the smoke and fumes outside my room?

It’s recommended to connect a flexible duct with extraction fan, and hang it out your window to get the harmful air out completely.

What is the laser working area inside the safety enclosure?

The working area will be smaller inside the enclosure. But no worries, we still have an A4 size working area which is enough for most engrave works.

In the Box

4

x

Long Frame Piece

7

x

Short Frame Piece

1

x

Frame with Hinges

1

x

Smoke Extraction Fan

8

x

Corner Bracket

3

x

Hinge

1

x

Door Handle

1

x

Front Plate

1

x

Back Plate

1

x

Left Plate

1

x

Right Plate

1

x

Top Plate

1

x

Phillips Screwdriver

1

x

Door Switch

5

x

Cable Organizer

12

x

M3x3 Screw

37

x

M3x6 Screw

1

x

M4x10 Screw

Well - I modified it...

Hi, I think the enclosure is good - but I modified it strongly. I cut the perspex sheets to make a shape that fits exactly to the allocated space on the side of my desk and 3d printed posts to hold the perspex in place. Thereby it can be folded up and taken out when needed. I also attached a filter (hepa and active carbon) to the inside of the fan. Thereby 99% (my estimate) of the produced smoke is captured (otherwise the room soon stinks and would need windows open - not so nice in mid winter). I am very happy with the result. I think you should provide such a filter option, as not everyone improvises the way I do - but I think everyone needs such a filter, it makes all the difference.

Safety Enclosure

Fitment issues

I had to drill my own holes for the hinges to close the door as they were missing from the factory, but other than that its good.

Hi Raymond,

Thanks for your feedback! Could you please contact us at support@rotrics.com? We will send the missing part to you. Thanks for your love for the enclosure!

Best Regards,
Jeff
