Attaching inner supports

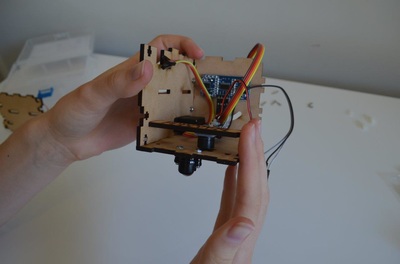

Push the Battery Brace into the slot as shown. Be sure that it is not pushing down onto the Piezo Buzzer, it should just be resting on it.

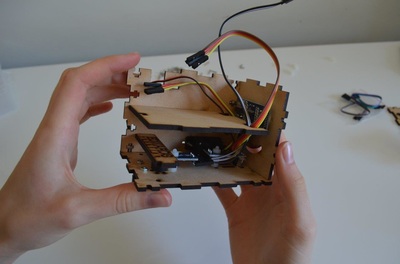

1-2. Insert the Battery cover into the slots as shown.

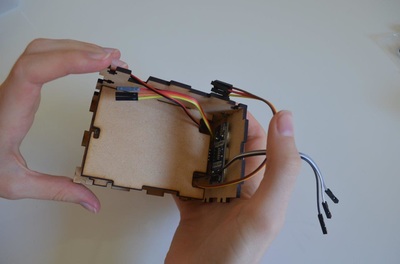

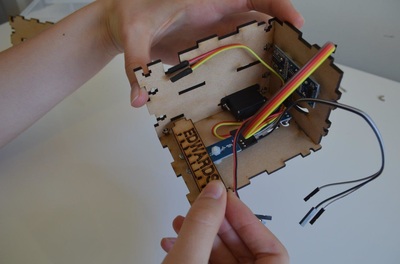

3. Route the Jumper cables as shown to make it easier to identify which cables belong to what component. Route the left motor and Ultrasonic Sensor Jumper cables through the left cut-out. route the IR, Piezo and right motor through the right cut-out.

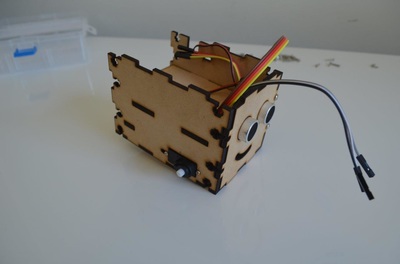

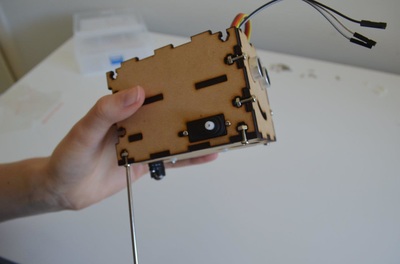

4. Insert the Right Plate. Ensure the Battery Brace and Battery cover are horizontal and are lined up with the mounting holes in the Right Plate before exerting pressure to install.
3. Route the Jumper cables as shown to make it easier to identify which cables belong to what component. Route the left motor and Ultrasonic Sensor Jumper cables through the left cut-out. route the IR, Piezo and right motor through the right cut-out.
4. Insert the Right Plate. Ensure the Battery Brace and Battery cover are horizontal and are lined up with the mounting holes in the Right Plate before exerting pressure to install.

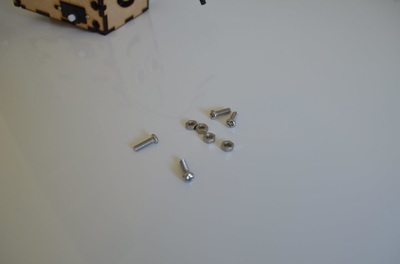

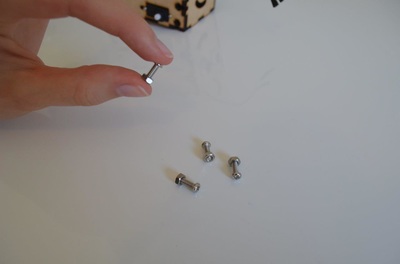

5-6. Get four large screws and four large nuts. Thread the nuts just onto the screws.

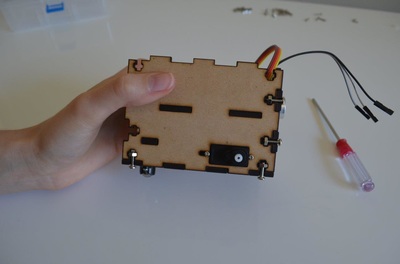

7-8. Insert the nuts into the nut traps and tighten using the Screwdriver.
7-8. Insert the nuts into the nut traps and tighten using the Screwdriver.
