Conveyor Belt Kit Installation Guide

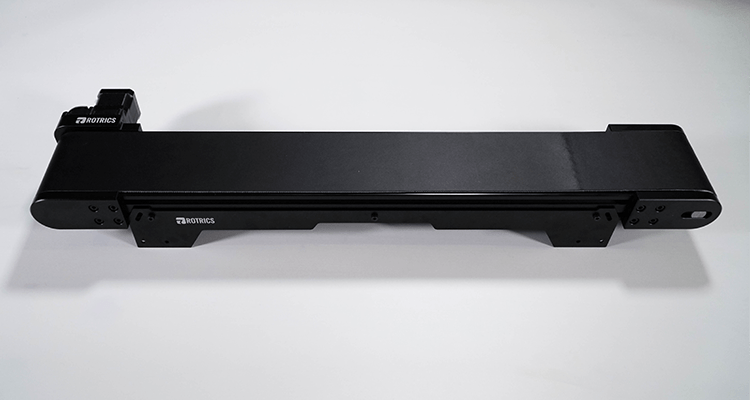

Conveyor Belt x 1
Frame x 2
Stand x 2

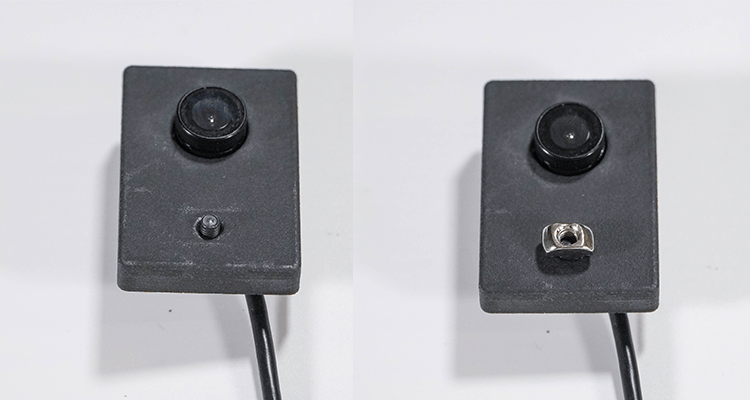

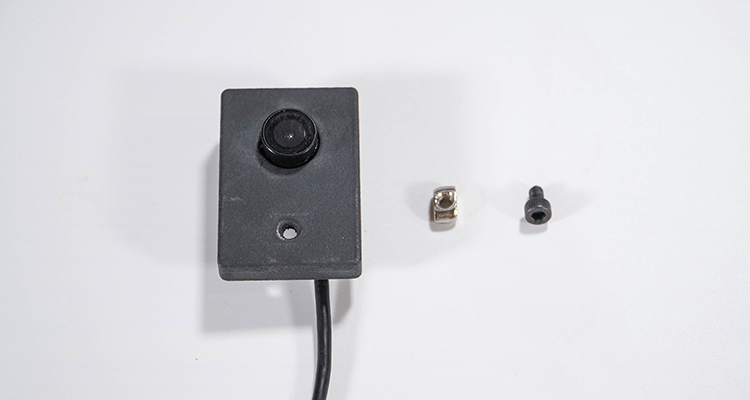

Camera Module x 1
Wood Block x 16
Production Line Map x 1
Motor Cable x 1
M4 Allen Key x 1
Foot Mat x 4
M4 x 8 Hex Screw x 16
M4 Slide Nut x 7

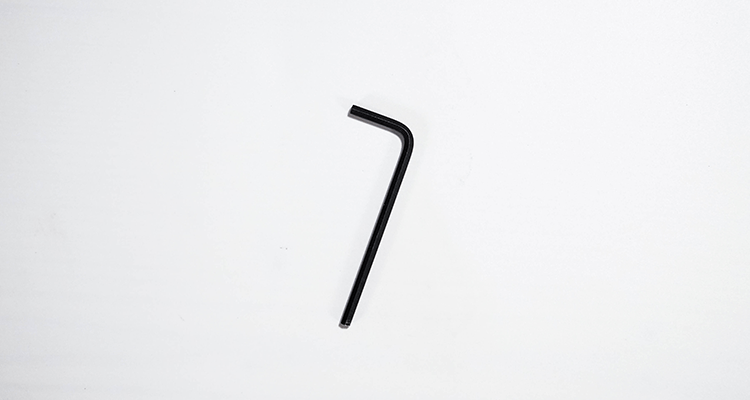

M4 Allen Key

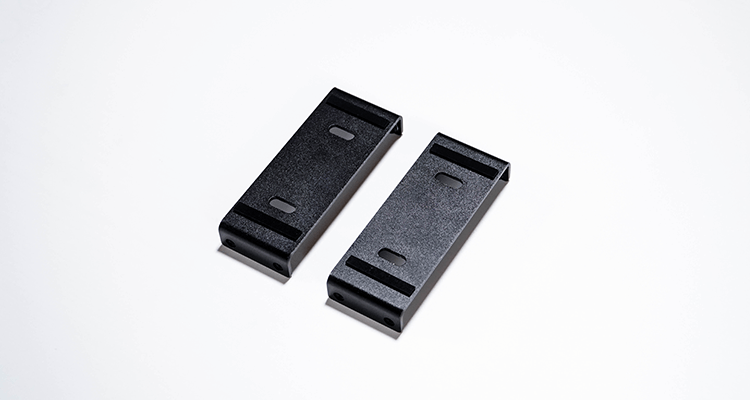

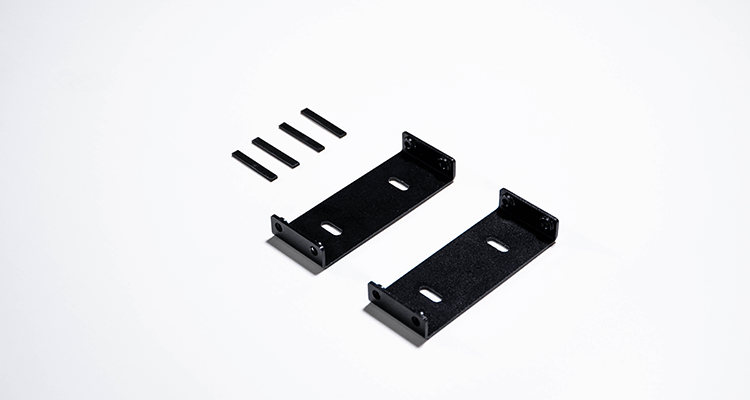

Stick 4 foot mats on the back of two Stands.

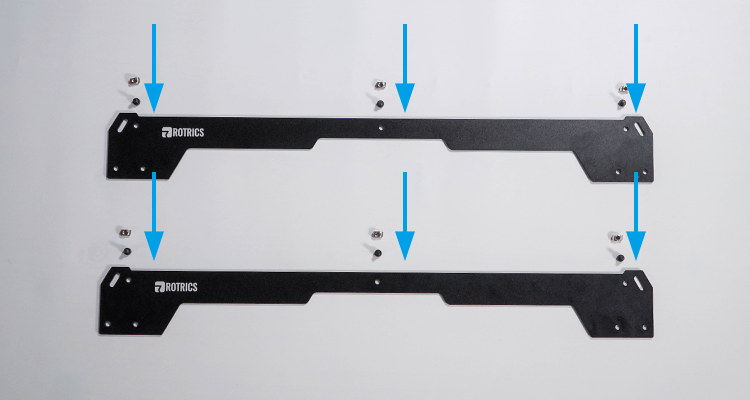

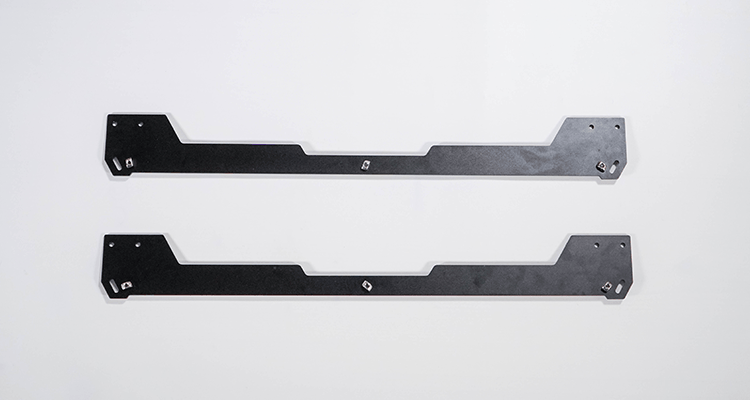

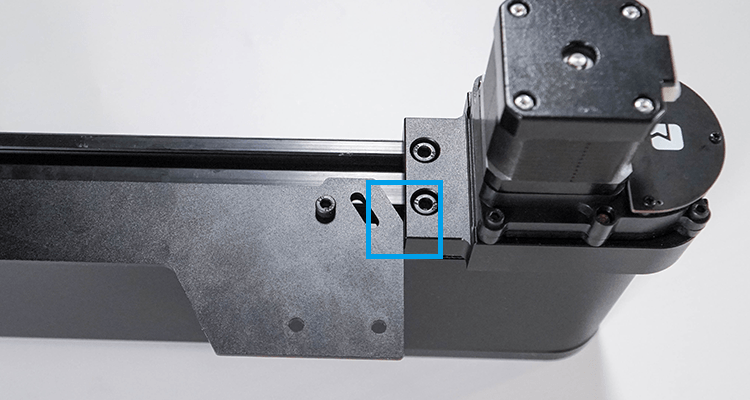

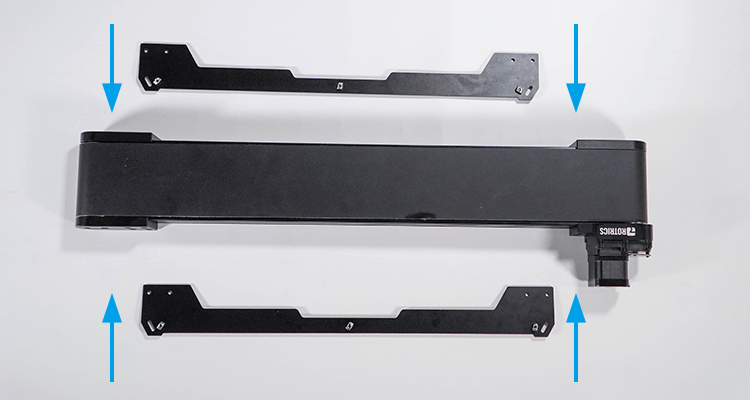

Screw 6 M4 x 8 hex screws on your conveyor belt frame with the slide nuts. Don't fasten the screws until next step.

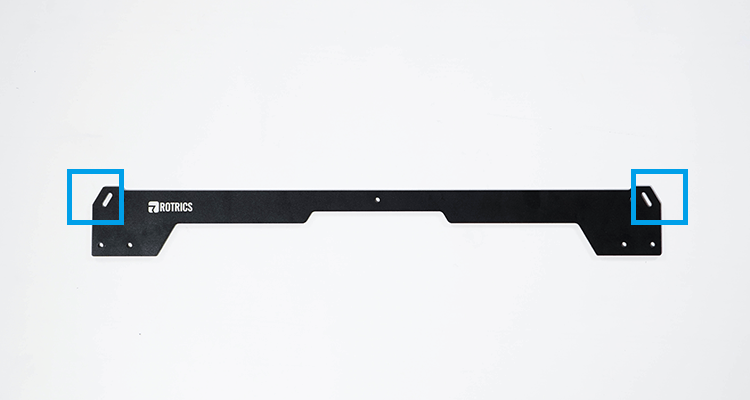

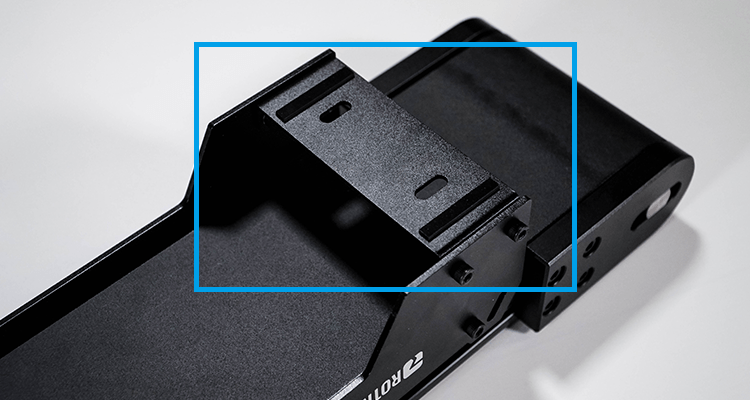

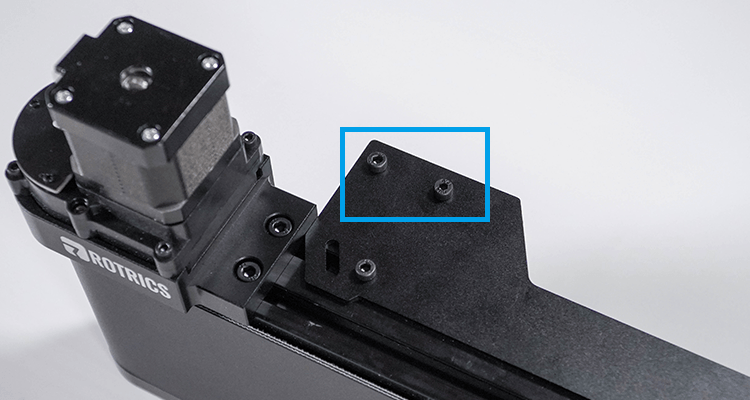

🧙♂ Tips: If you want to place the conveyor belt on a tilted desk, you could use two slope holes to mount the frames.

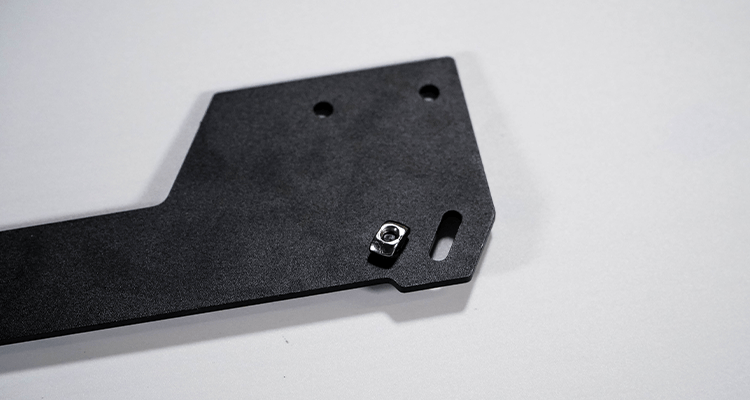

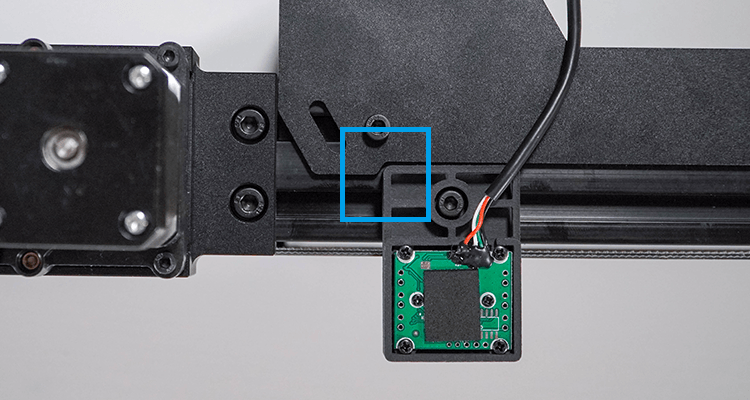

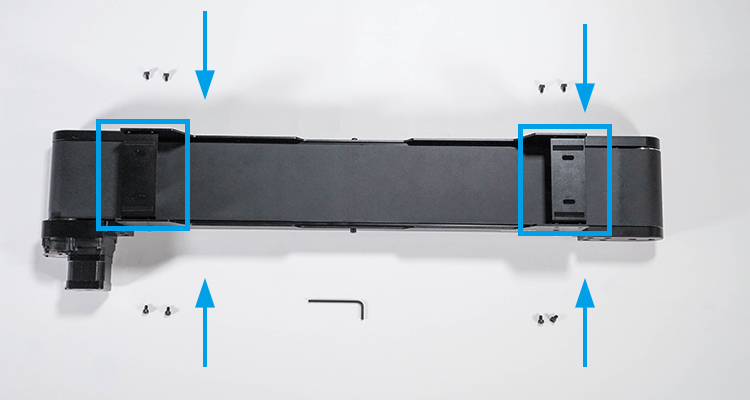

🧙♂ Tips: when screwing on, screw to loose a little bit first and then fasten, it will help the slid nuts firmly stuck in the slide.

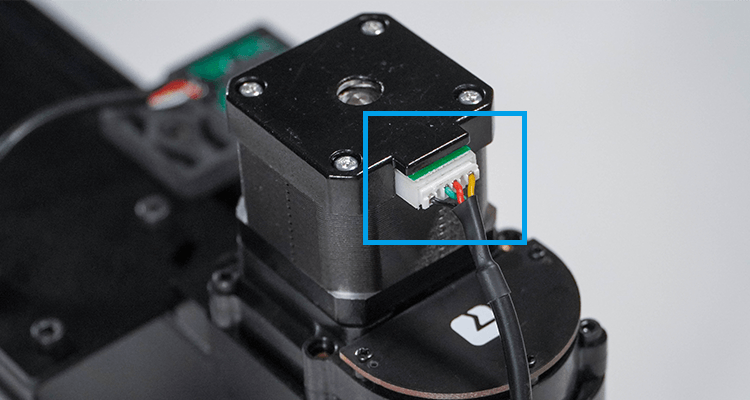

That's all for assembling the conveyor belt. Now click the button below and learn to use the conveyor belt kit.
