MH3000





Bannière de 240x200 pixels
http://cdn2.bigcommerce.com/n-pktq5q/tvxfa/products/78/images/333/NEW_pic_edited__72513.1393527858.1280.1280.jpg?c=1

Pricerange: $ 2600.00

Max build-size: 28 x 30 x 19 cm

Assembly time: 10-12 hours

http://www.ordsolutions.com/mh3000-5-color-material-3d-printer-with-liquid-cooling-fully-assembled/
https://www.kickstarter.com/projects/ordsolutions/5-color-material-3d-filament-printer-made-in-canad

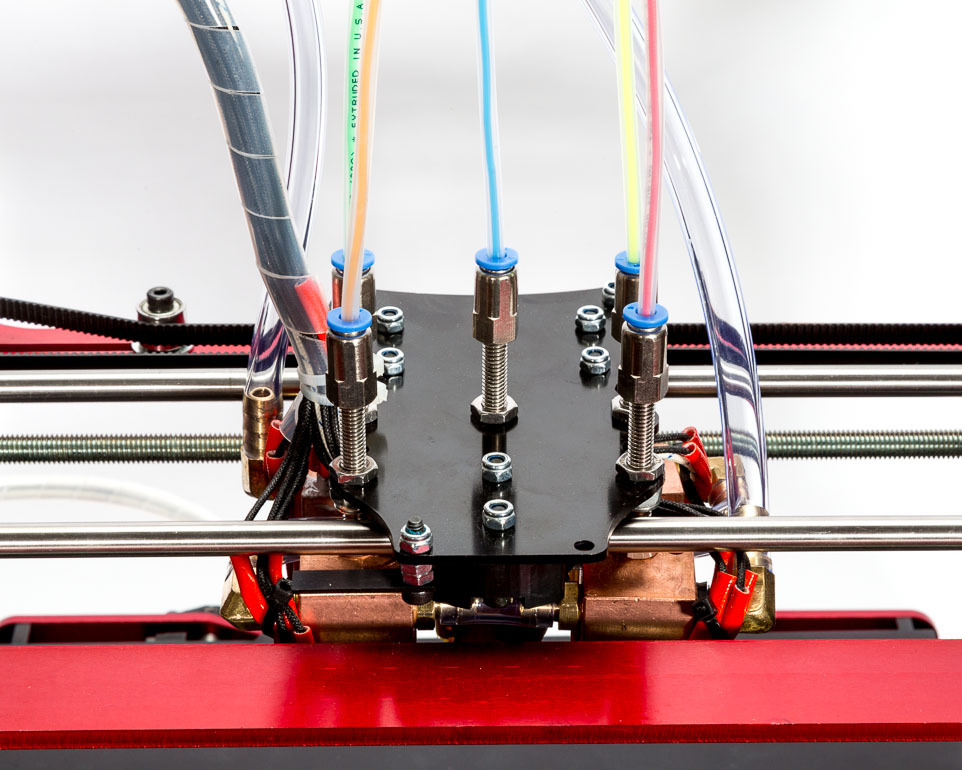

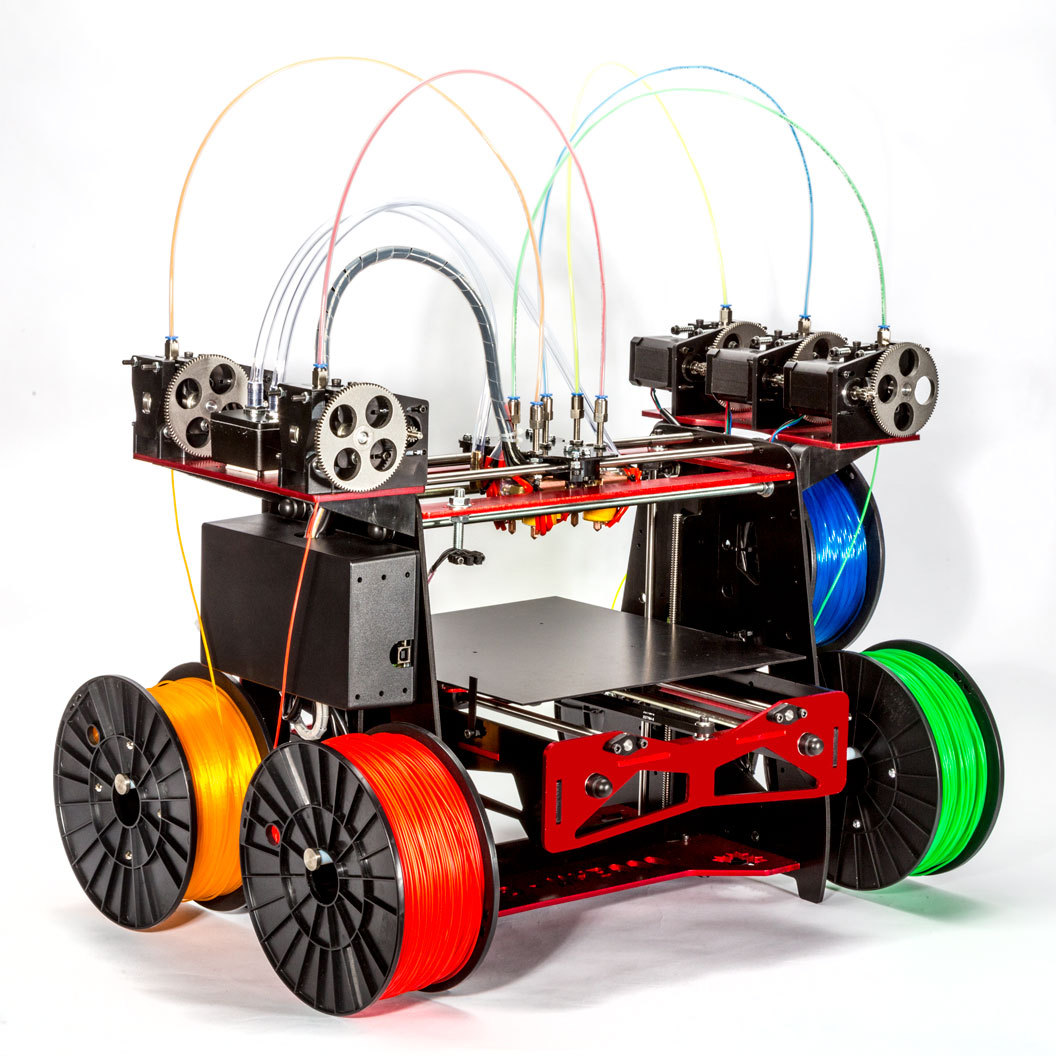

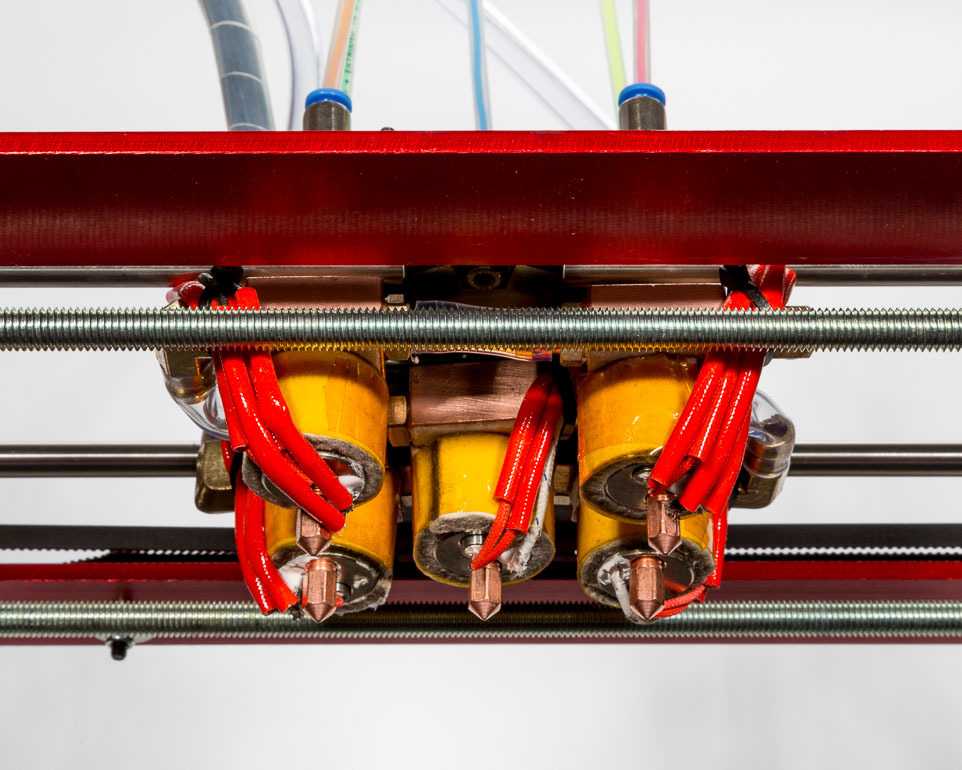

This Canadian made 3D Filament Printer sports a completely redesigned frame from our BTO1001R2 for larger sized 3D Prints (80% larger than a Makerbot Replicator 2x). The entire printer is constructed from Aerospace grade aluminium and looks amazing! It's a marvel of engineering, every piece of the printer has been custom engineered from the frame, to the gears, and the electronic control board to the optical end stops. It's a work of art in itself. While our BTO1001R2 only had one single extruder nozzle, The MH3000 can have 1, 2, 3, 4, or even 5 extruder nozzles - that means you could print an object with five different colours throughout the object without stopping to switch the filament. Or you could use three of the five nozzles for different colours, one larger nozzle for faster infilling, and one for a different support material. It's up to you! The brand new liquid cooling system keeps the temperature of the all metal hot ends electronically regulated. The printer has a heated bed, and our hot ends can withstand temperatures of up to 450 Celsius - which means there is a large variety of materials that can be printed using the MH3000. This is a 3D Printer you want to show to your friends. The printer will fit in the space a normal 2D paper printer will fit. They come fully production ready. Even if you are not technically savvy our instructional videos will have you up and running in very little time. Our Printers are brand new, fully assembled and calibrated and are plug-n-play ready. They are built and tested in-house before being shipped. The MH3000 is very useful for rapid prototyping your ideas and inventions.


Specifications:

Layer height (min/max): 0.025/1.00mm
Print resolution/accuracy: X/Y 0.010mm (10 micron), Z 0.0005mm (0.5 micron)
Print temperature: Variable between Ambient and 450 degrees C
Print Materials: PLA / ABS / Soft PLA / Nylon / Polycarbonate
Weight: 25kg Approx (excl power supply)
Power Supply: 115V/230V, 10A/6A, 60/50 Hz (adjusts automatically)
Build volume (inches): 11.18(x) * 11.88(y) * 7.55(z) or 1002.77 cubic inches
Build volume (mm): 284.2(x) * 301.88(y) * 191.97(z) or 0.0164699 cubic metres
Footprint: 11 x 15 inches

Requirements:

- Windows, Mac, or Linux computer with one available USB port
- 3D Printer plastic filament (we sell this too)

Suggestions:

  • Polyimide tape
  • 0.35mm drill bit
  • Extra long 2mm drill bit
  • Adjustable pliers
  • 4mm Allen key
  • Lubricating oil
  • 1/2" combination wrench (optional)
  • 10mm combination wrench (optional)
  • Feeler gauges (optional)

Plastic component color: BLACK









Cambridge, Canada
