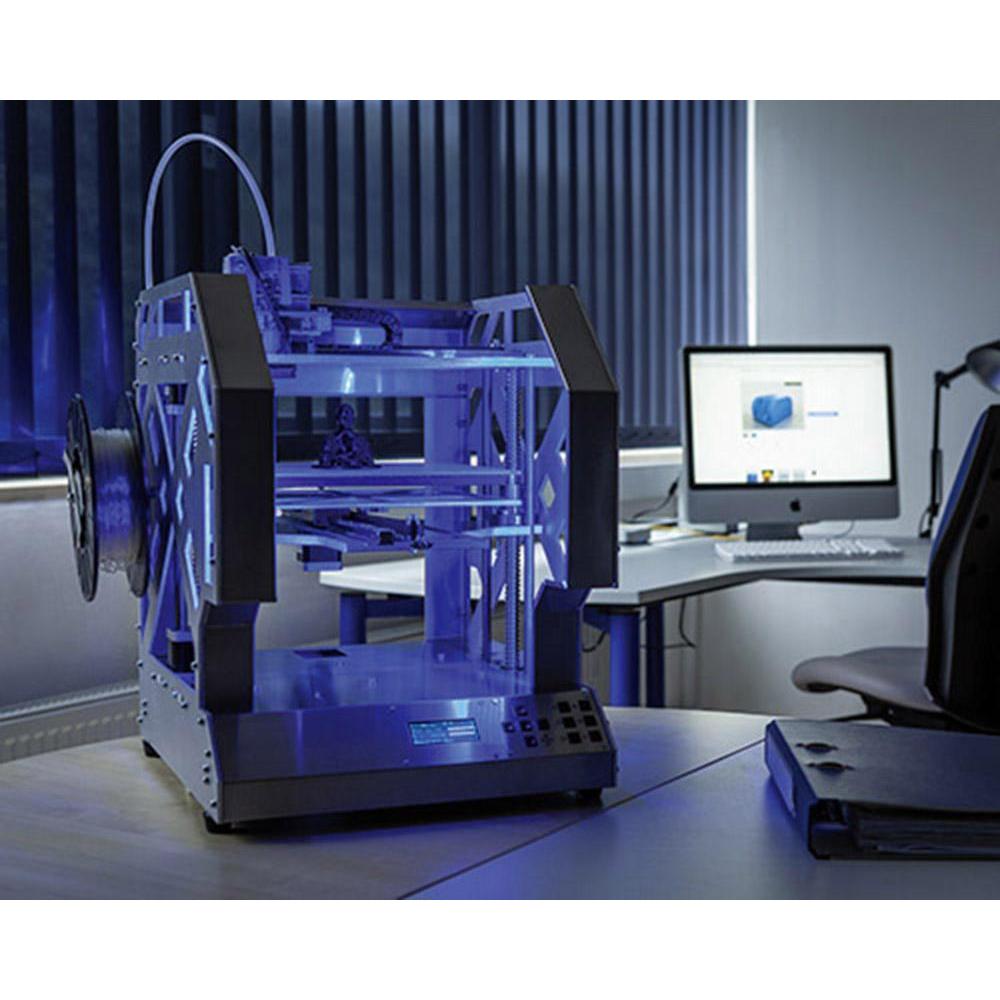

RF1000 3D printer

Highlights & details

• Large 245 x 230 x 175 mm print chamber
• Zero-backlash profiled rail guides & ball bearings guarantee high precision printing
• Protected automated sheet size detection
• Ceramic hot plate with textured surface
• Precision extruder with changeable nozzle
• Built-in high-durability power supply unit
• Display & keypad for device operation
• Made in Germany

Description

RF1000 3D printer - the product details below will help you select and purchase the item you want at Conrad online:

When it comes to 3D printing, the technology and design of the RF1000 definitely sets new standards: the assembly is easy and straightforward. The printer can either be PC-operated (via USB) or as a standalone via data feed from a SD memory card. The built-in display allows for easy monitoring of the printing process. The print control menu can be accessed via a built-in keypad that also features special keys for a manual adjustment of the printing parameters during the ongoing printing process.

The RF1000 mechanical parts are made from aluminium and steel, providing all-around stability and protection. Rubber shock absorbers minimise the risk of vibration-induced damage during non-stop operation.

The Renkforce RF1000 printer is designed for standard 3D printing filaments supplied by leading manufacturers such as ABS, PLA, PVA, EcoPLA™, PET, Taulman, Layrick, Bendlay, Laywood-D3, HIPS and smart ABS.

The large print chamber volume (10 litres) enables the fabrication of objects up to 230 x 245 x 175 mm.
Full scope to your imagination!

The outstanding feature of the Renkforce RF1000 are the high quality components that make up the printer.

These include:

• Precision extruder with changeable nozzle


• State-of-the-art high performance motor driver


• Industry-standard profiled rail guides and ball bearings guarantee high precision and long service life


• The tried and tested TDK Lambda power supply enables non-stop operation


• Cable tracks prevent lead abrasion/ fractures


• Precision Fused Filament Fabrication / Fused Deposition Modelling


• The use of high quality aluminium, stainless steel and CNC parts prevents material fatigue


• The powerful 450W heating system and the ceramic hot bed with textured surface allow the use of a wide range of materials, provide a unique finish, and enable a straightforward removal of the fabricated object after the cool down.

The Renkforce RF1000 features automated sheet size detection and smart printing adjustment. No more hassle with adjusting the setting after each and every print run! Moreover, a low operating noise as well as print chamber lighting put the RF1000 3D printer in a league of its own.

Thanks to a wide range of available accessories available soon, converting the printer into a multifunction device will be easy and straightforward. These optional accessories include a printer head adapter for mini milling/engraving machines (up to 200W), aimed at model makers and prototype designers. Means PCB shaping, signage lettering and engraving as well as the fabrication of CNC workpieces made of PVC, wood, aluminium, brass and, to some extent, even steel, won't be a big deal anymore.

Also currently under development are printer head adapters suitable for lasers, enabling e.g. micro engravings and material surface processing.

Included in delivery

• 3D printer
• User manual

Filament not included!

Technical data

Category	3D printer
Specification	Ready device
Supported printing supplies	PLA, ABS, Polyamid, PET, Laywood
Max. printing width (X)	245 mm
Max. printing height (Y)	200 mm
Max. printing depth (Z)	230 mm
Printing pad features	heatable, exchangeable
Extruder type	Single
Nozzle Ø	0.5 mm
Printed layer thickness (min.)	0.05 mm
Printed layer thickness (max.)	0.4 mm
SD card slot	Yes
Interfaces	USB 2.0
Colour	Silver (satin)
Case material	Aluminium, steel
Width	375 mm
Height	500 mm
T	410 mm
Weight	16.5 kg
Operating voltage	100 - 240 V
Power consuption (max.)	620 W
